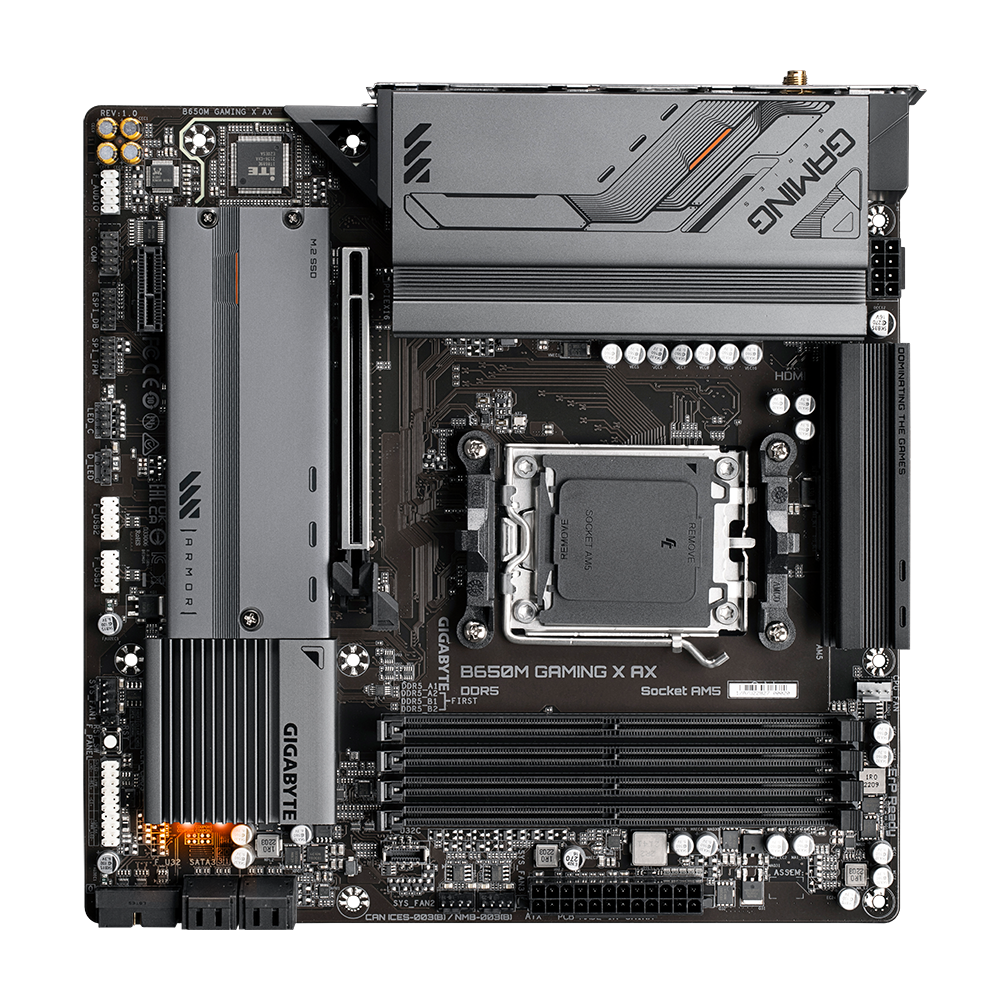

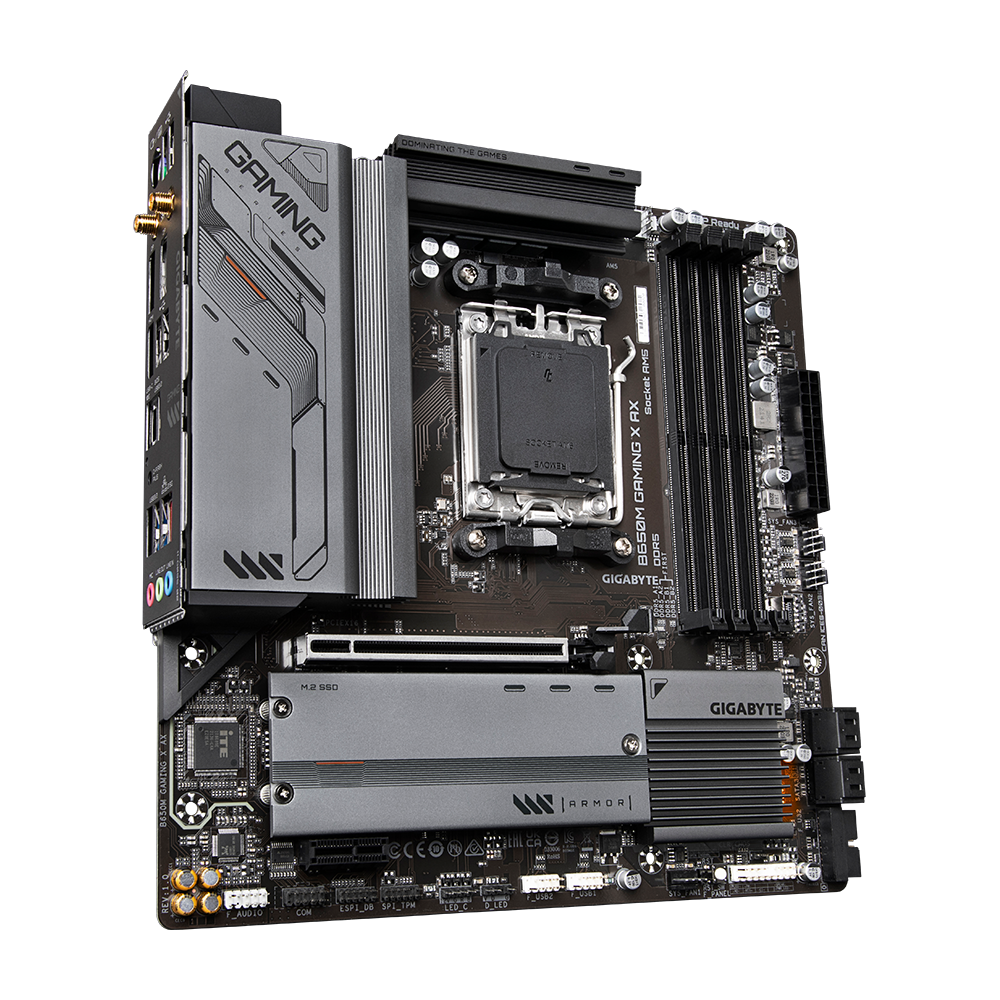

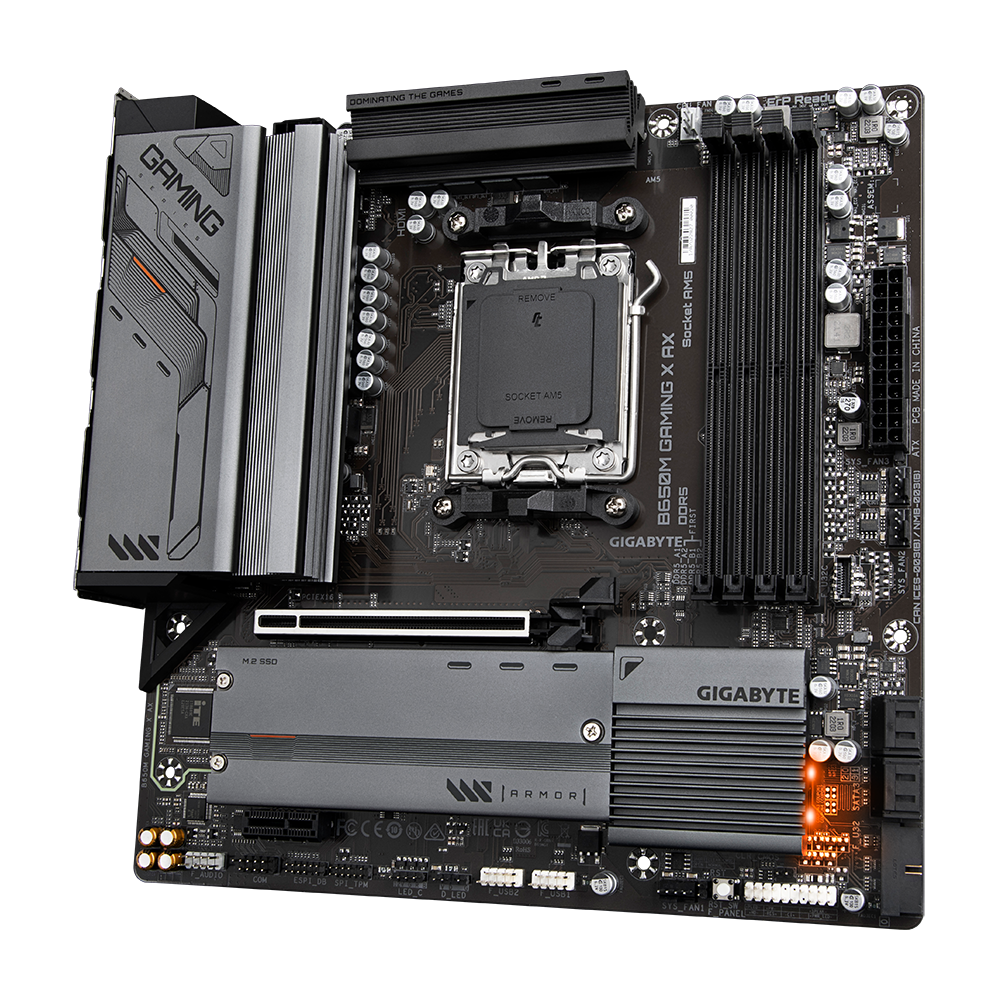

Gigabyte B650M Gaming X AX Motherboard (rev. 1.x)

(1 customer review)

Get the Gigabyte B650M Gaming X AX Motherboard from Kharidiye.com at the best price. Best features includes:

AUDIO:
Realtek® Audio CODEC
CHIPSET:
AMD B650
FORM FACTOR:
Micro ATX Form Factor; 24.4cm x 24.4cm
LAN:
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
MEMORY/TYPE/BUS/MAX.:
Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules, 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM
PCI SLOTS:
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
PROCESSOR SUPPORT:
AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
RAID:
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
RAM TYPE/BUS/MAX.:
Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules, 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM
SOCKET:
AM5
STORAGE INTERFACE:
CPU: 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors
WARRANTY:
3 Years
TITLE:
GA-B650M-GAMING-X-AX

About the item:

  • AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance：Direct 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：2*DP, HDMI, 2*USB-C® 10Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

About Gigabyte B650M Gaming X AX Motherboard

Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen? 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Supported processor sockets Socket AM5
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
Non-ECC Y
Supported memory clock speeds 4400,4800,5200,5600,6000,6200,6400 MHz
Supported memory clock speed (max) 6400 MHz
Maximum internal memory 128 GB
Unbuffered memory Y
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
Number of storage drives supported 6
RAID support Y
RAID levels 0, 1, 10
Graphics
Parallel processing technology support Not supported
Maximum resolution 4096 x 2160 pixels
HDCP Y
Number of displays supported 3
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector Y
Front panel connector Y
ATX Power connector (24-pin) Y
CPU fan connector Y
EPS power connector (8-pin) Y
12V power connector Y
TPM connector Y
Serial port headers 1
RGB LED pin header Y
Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 1
PS/2 ports quantity 1
HDMI ports quantity 1
HDMI version 2.1
DisplayPorts quantity 2
DisplayPort version 1.4
Headphone outputs 3
Microphone in Y
USB connector type USB Type-A, USB Type-C
Network
Ethernet LAN Y
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Y
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth Y
Bluetooth version 5.3
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family AMD
Motherboard chipset AMD B650
Audio output channels 7.1 channels
PC health monitoring Fan, Temperature, Voltage
Windows operating systems supported Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 slots 1
PCI Express x16 slots 1
Number of M.2 (M) slots 2
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 5.0
Clear CMOS jumper Y
System Management BIOS (SMBIOS) version 2.7
Desktop Management Interface (DMI) version 2.7
Weight & dimensions
Width 244 mm
Depth 244 mm
Packaging content
Cables included SATA

About Gigabyte Gaming Motherboard

To ensure maximum Turbo Boost and overclocking performance of AMD’s new generation CPU, the Gigabyte B650M Gaming X AX Motherboard is equip the best VRM design ever built with the highest quality components.

The Gigabyte B650M Gaming X AX Motherboard is ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices.

To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond AORUS is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond.

All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their AORUS motherboard.

OUTSTANDING THERMAL DESIGN The Gigabyte B650M Gaming X AX Motherboard offers an UN-THROTTLED PERFORMANCE that is guaranteed by innovative and optimise thermal design.

This is done to ensure the best CPU, Chipset, SSD Stability and low temperature under full laod applciation and gaming performance.

SMART FAN 6 Smart Fan 6 in the Gigabyte B650M Gaming X AX Motherboard contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet.

Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

802.11ax Wi-Fi 6E is the the latest Wireless solution in the Gigabyte B650M Gaming X AX Motherboard with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps.

Moreover, Bluetooth 5 in the Gigabyte B650M Gaming X AX Motherboard provides 4X range over BT 4.2 and with faster transmission.

Connecting the Future – USB 3.2 Gen 2 Type-C The USB 3.2 Gen 2 ports in the Gigabyte B650M Gaming X AX Motherboard provide with speeds up to 10Gbps.

With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 3.2 Gen 1 and USB 2.0, the much-improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

High-End Audio Capacitors in the Gigabyte B650M Gaming X AX Motherboard use high-end audio capacitors.

These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard in the Gigabyte B650M Gaming X AX Motherboard features an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

RGB Fusion Multi-Zone Light Show Design Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle.

With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

Actual lighting effects may vary by model. Multi-key A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.

With GIGABYTE EZ-Latch in the Gigabyte B650M Gaming X AX Motherboard you can DIY your PC in no time, quick and easy.

PCIe EZ-Latch Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Q-Flash Plus Update the BIOS easily without installing the CPU, memory and graphics card.

With GIGABYTE Q-Flash Plus in the Gigabyte B650M Gaming X AX Motherboard, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS.

Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

With the Gigabyte B650M Gaming X AX Motherboard you can also attain the Gigabyte B650 Gaming X AX Motherboard.

  • AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance：Direct 8+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage：3*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • PCIe x16 EZ-Latch with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s, Front USB-C® 20Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
