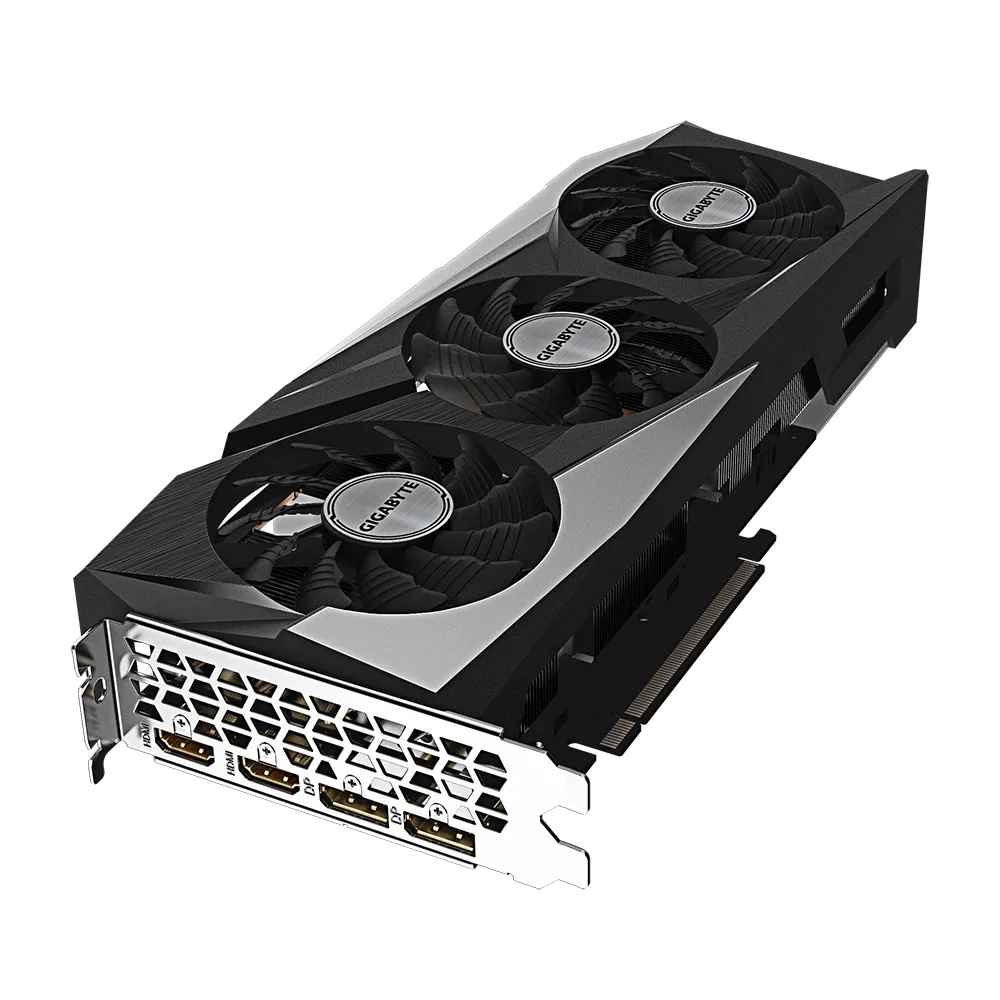

About Gigabyte Radeon RX 7600 Gaming OC 8G Graphics Card
| Specification | Details |
|---|---|
| GPU Architecture | AMD RDNA™ 3 |
| Process Technology | 6 nm |
| Stream Processors | 2,048 |
| Texture Units | 128 |
| ROPs | 64 |
| Ray Accelerators | 32 |
| Game Clock | Up to 2,355 MHz |
| Boost Clock | Up to 2,755 MHz |
| Memory Capacity | 8 GB GDDR6 |
| Memory Interface | 128-bit |
| Memory Speed | 18 Gbps |
| Memory Bandwidth | 288 GB/s |
| PCI Express Support | PCIe 4.0 x8 |
| Display Outputs | 2x DisplayPort 1.4a, 2x HDMI 2.1 |
| Maximum Resolution | 8K |
| Cooling System | WINDFORCE 3X with three 80mm fans, composite copper heat pipes, 3D active fan, Screen cooling |
| Power Connectors | 1x 8-pin |
| Recommended PSU | 500W |
| Card Dimensions | 282mm x 117mm x 50mm |
| Features | RGB Fusion 2.0, Protection metal back plate, Graphene nano lubricant |
The Gigabyte Radeon RX 7600 Gaming OC 8G graphics card is engineered to deliver exceptional performance, advanced cooling solutions, customizable aesthetics, and robust durability, making it an ideal choice for gamers and content creators seeking a high-quality 1080p gaming experience.
Key Features of the Gigabyte Gaming OC Series Graphics Card
- Powered by AMD Radeon™ RX 7600: Built on the AMD RDNA™ 3 architecture, this graphics card offers enhanced performance and efficiency for gaming and streaming.
- 8GB GDDR6 Memory: Equipped with 8GB of GDDR6 memory on a 128-bit interface, it ensures smooth and responsive gameplay.
- WINDFORCE Cooling System: Features a triple-fan cooling solution for efficient heat dissipation.
- RGB Fusion: Offers customizable lighting with 16.7 million color options and various effects.
- Protection Metal Back Plate: Enhances structural integrity and provides additional protection.
Core Clock in the Gigabyte Gaming OC Series Graphics Card
The Gigabyte Radeon RX 7600 Gaming OC 8G graphics card boasts impressive clock speeds:
- Boost Clock: Up to 2,755 MHz, surpassing the reference card’s 2,655 MHz.
- Game Clock: Up to 2,355 MHz, compared to the reference card’s 2,250 MHz.
These elevated clock speeds contribute to superior performance in demanding gaming scenarios.
WINDFORCE Cooling System in the Gigabyte Computer Gaming Graphics Card
Gigabyte’s WINDFORCE cooling system is designed to maintain optimal temperatures during intensive tasks. Key components include:
- Triple 80mm Unique Blade Fans: The airflow is split by the triangular fan edge and guided smoothly through the 3D stripe curve on the fan surface, enhancing airflow.
- Alternate Spinning: The central fan spins in the opposite direction to the side fans, reducing turbulence and increasing airflow pressure.
- Composite Copper Heat Pipes: Five heat pipes make direct contact with the GPU, facilitating efficient heat transfer.
- 3D Active Fan: Provides semi-passive cooling; the fans remain off during low-load or low-power scenarios, offering silent operation.
- Screen Cooling: An extended heatsink design allows air to pass through, providing better heat dissipation.
Additionally, the use of graphene nano lubricant extends the life of the sleeve bearing fans by 2.1 times, approaching the longevity of double ball bearing fans while maintaining quieter operation.
RGB Fusion in the Gigabyte Radeon RX 7600 Gaming OC 8G
The card features RGB Fusion, offering 16.7 million customizable color options and numerous lighting effects. Users can personalize their setup or synchronize lighting with other Gigabyte devices through the Gigabyte Control Center.
Design and Durability of the Gigabyte Radeon RX 7600 Gaming OC 8G
The Gigabyte Radeon RX 7600 Gaming OC 8G is built with both aesthetics and durability in mind:

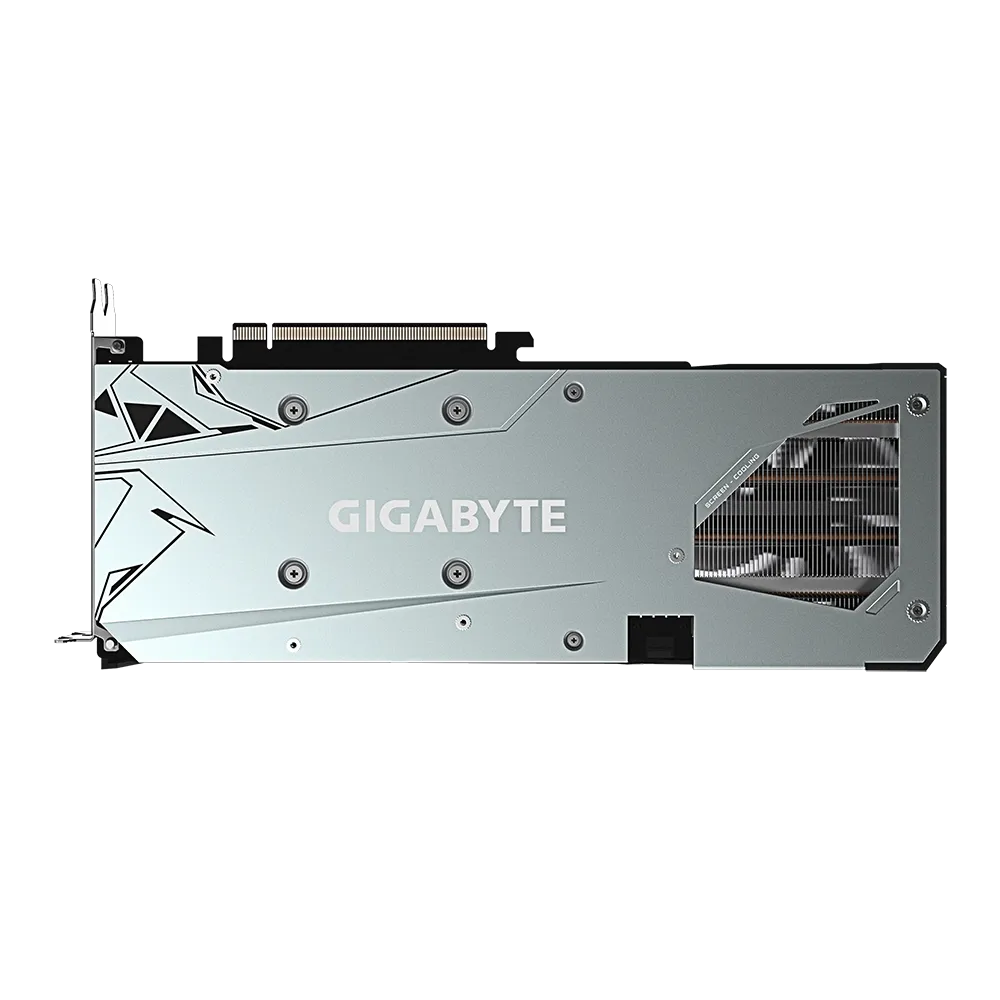

- Protection Metal Back Plate: Not only adds a sleek look but also enhances the structural integrity of the card, providing complete protection.
- Power Indicator: Alerts users with a flashing light in case of any power supply abnormalities, ensuring system stability.
- Ultra Durable Components: Utilizes high-grade materials, including metal chokes, lower ESR solid capacitors, and a 2oz copper PCB, ensuring superior performance and a longer lifespan.
Gigabyte Software in the AMD Radeon Computer Gaming Graphics Card
The Gigabyte Control Center (GCC) is a unified software platform that provides an intuitive interface for users to adjust various settings in real-time:
- Clock Speed and Voltage: Fine-tune performance parameters to match specific requirements.
- Fan Modes: Customize fan profiles to balance cooling efficiency and noise levels.
- Power Target: Set power consumption targets to optimize performance and energy efficiency.
The GCC also facilitates RGB lighting customization, allowing users to synchronize lighting effects across all compatible Gigabyte devices for a cohesive aesthetic.
Application of the Gigabyte Radeon RX 7600 Gaming OC 8G
Designed for 1080p gaming, the Gigabyte Radeon RX 7600 Gaming OC 8G delivers exceptional performance in modern titles, providing high frame rates and detailed visuals.
Its advanced cooling system ensures stable operation during extended gaming sessions, while the customizable RGB lighting allows users to personalize their gaming rigs.
The card’s durable construction and high-quality components make it a reliable choice for both gaming enthusiasts and content creators seeking a robust and efficient graphics solution.
In summary, the Gigabyte Radeon RX 7600 Gaming OC 8G combines high performance, efficient cooling, customizable aesthetics, and durable design, making it a compelling option for those looking to enhance their computing experience.
With this you can also attain the Gigabyte GeForce RTX 4080 Super Gaming OC 16G Graphics Card
- RGB Fusion: Offers customizable lighting with the legendary three-ring design, allowing synchronization with other devices via GIGABYTE CONTROL CENTER.
- Dual BIOS: Enables users to switch between OC mode for optimal performance and silent mode for a quieter experience.
- Protection Metal Back Plate: Enhances the structural integrity of the graphics card while providing complete protection.
