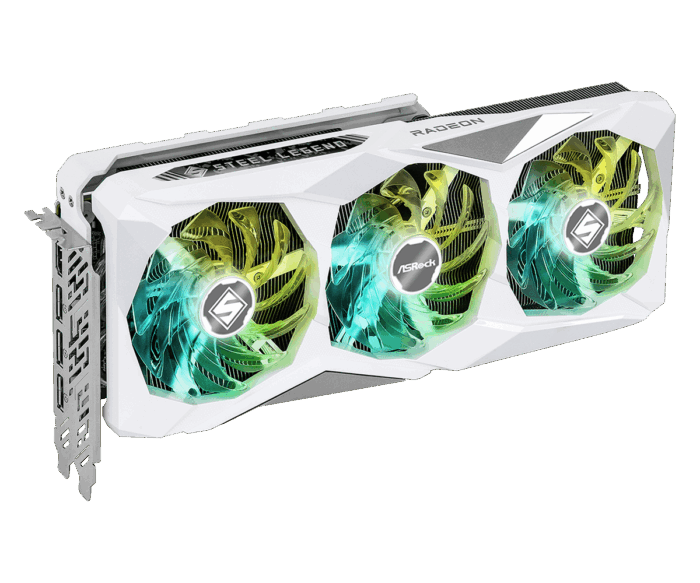

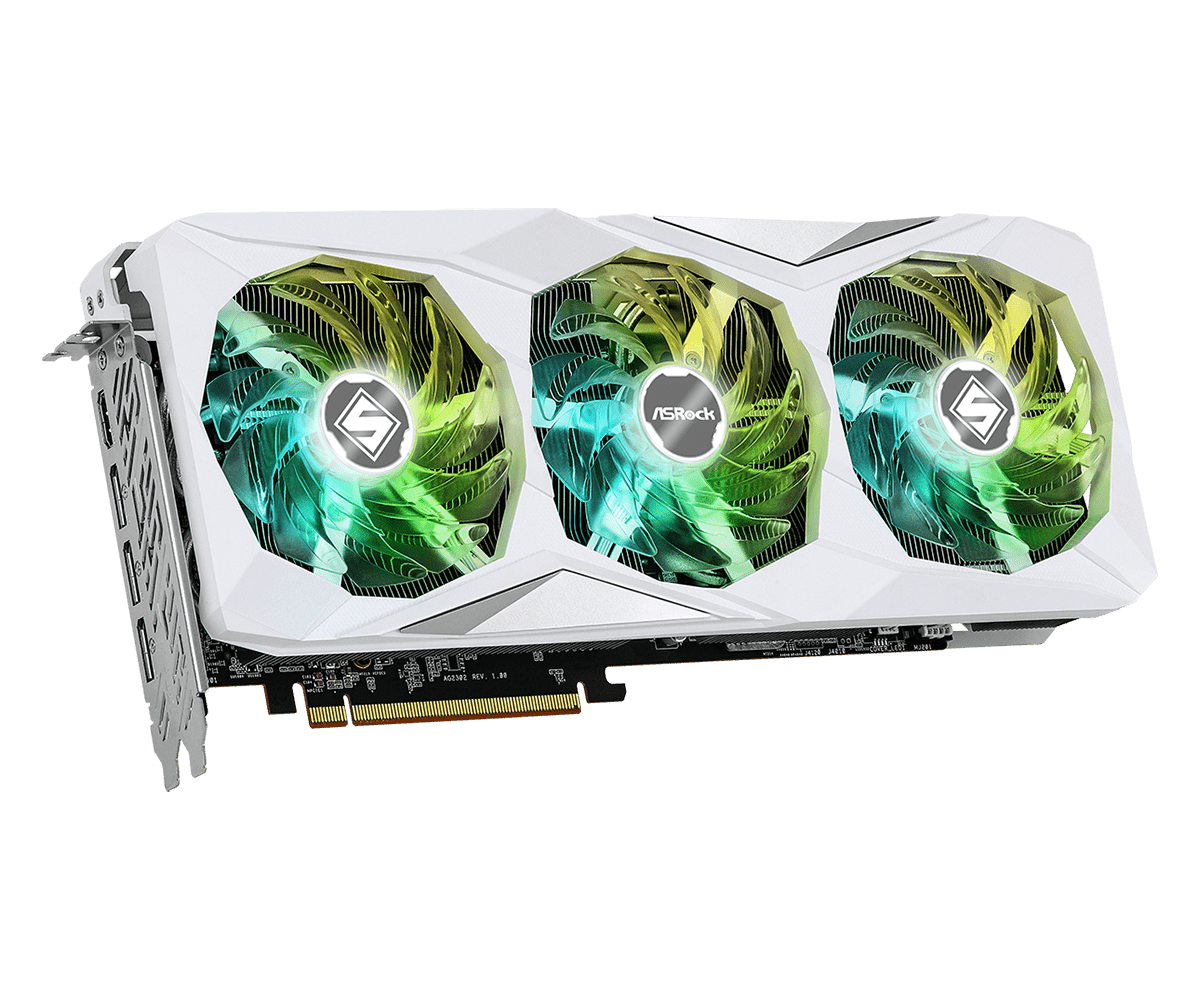

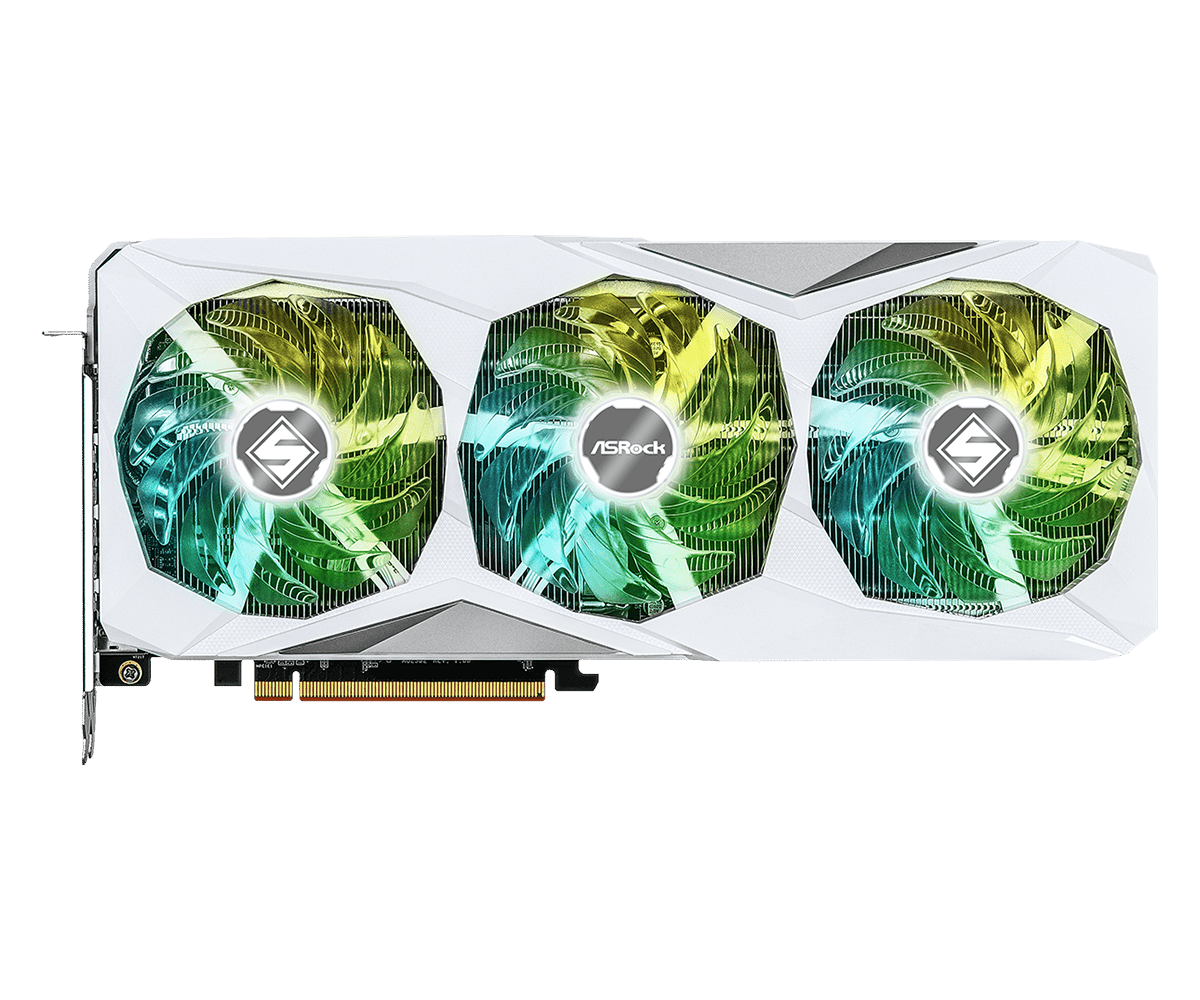

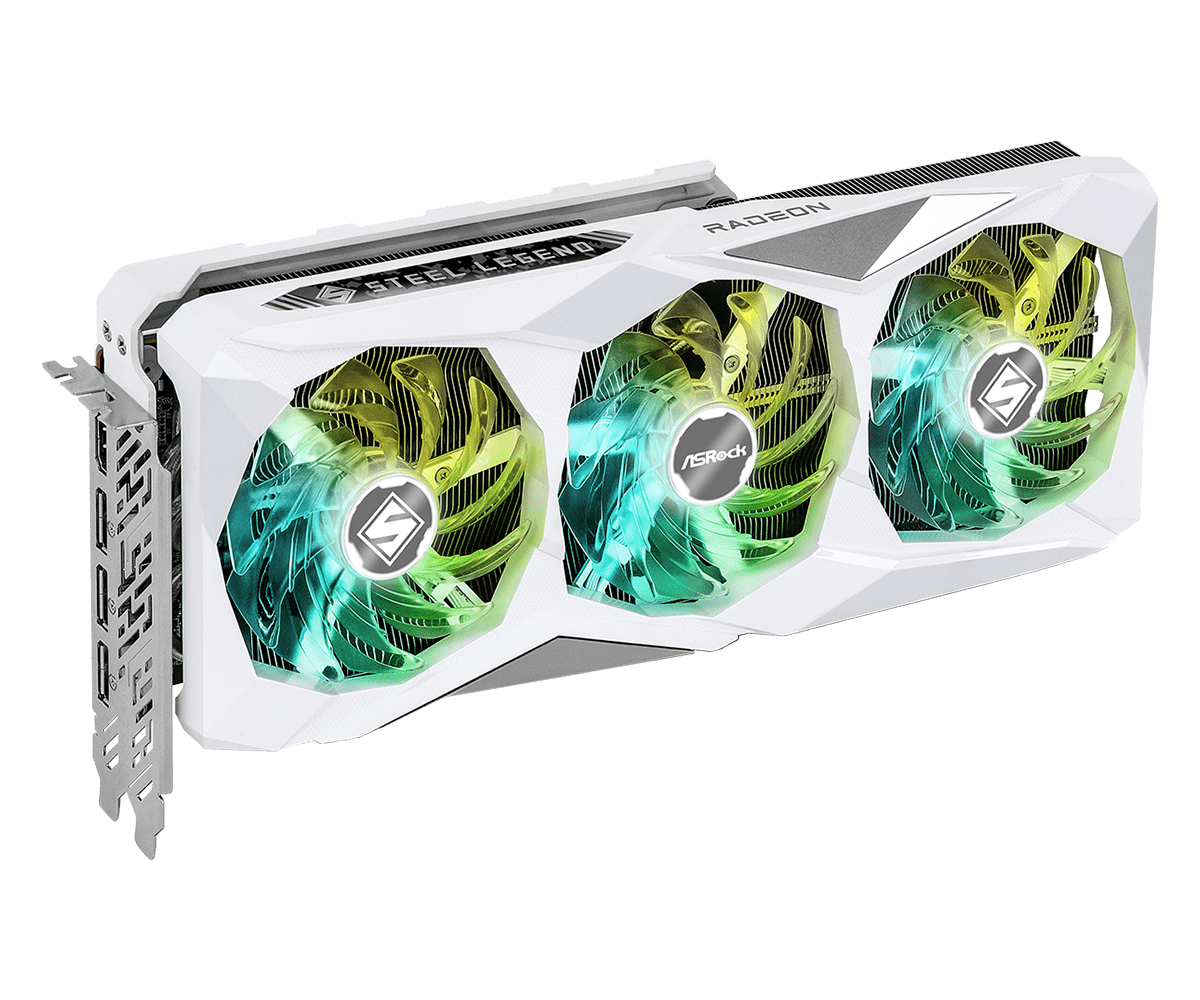

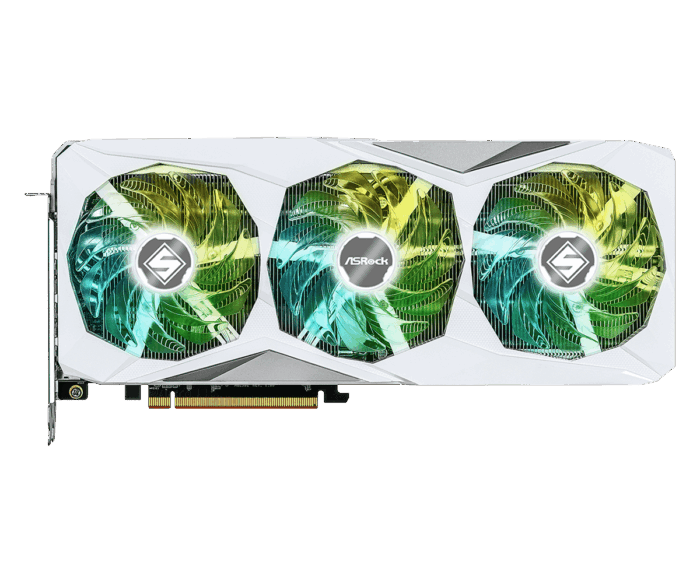

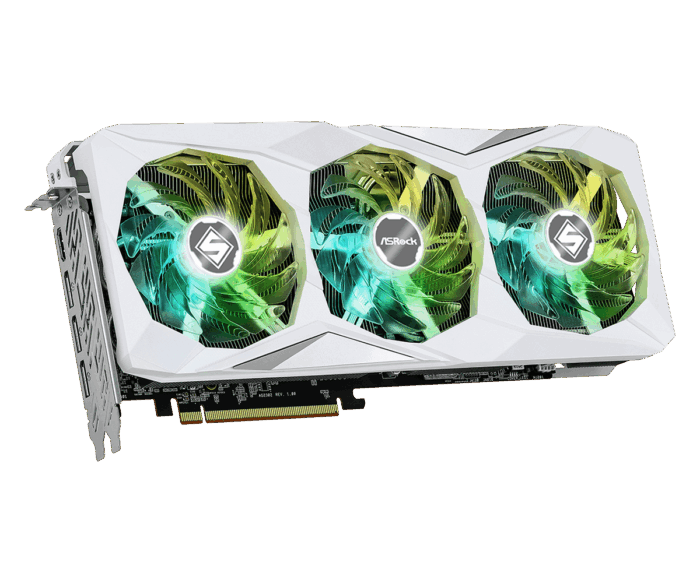

AsRock AMD Radeon RX 7800 XT Steel Legend 16GB OC Graphics Card

 About AsRock RX 7800 XT Steel Legend 16GB OC Graphics Card

Core Specifications of this AsRock AMD Radeon OC Edition Graphics Card

• GPU Architecture: AMD Radeon™ RX 7800 XT with RDNA™ 3 technology

• Compute Units: 60 with RT+AI Accelerators

• Memory: 16GB GDDR6 on a 256-bit memory bus

• Infinity Cache: 64MB AMD Infinity Cache™

• Clock Speeds:

  • Boost Clock: Up to 2520 MHz

  • Game Clock: 2213 MHz

• Memory Speed: 19.5 Gbps

• Interface: PCI Express 4.0

• Display Outputs: 3 x DisplayPort™ 2.1, 1 x HDMI™ 2.1

• Maximum Resolution: 7680 x 4320 (8K)

• Power Connectors: 2 x 8-pin

• Recommended PSU: 800W

Polychrome SYNC of the AsRock AMD Radeon OC Edition Graphics Card

• Customizable ARGB Lighting: Integrated ARGB LEDs allow for personalized lighting effects.

• Synchronization: Compatible with ASRock motherboards supporting Polychrome SYNC for unified lighting control.

• LED On/Off Switch: Easily toggle the ARGB lighting as per your preference.

Advanced Cooling Solutions of the AsRock AMD Radeon Computer Graphics Card

• Triple Fan Design: Three fans in the AsRock RX 7800 XT Steel Legend 16GB OC Graphics Card work collectively to optimize system cooling and reduce operating temperatures.

• Striped Axial Fans: Custom-designed fans with striped structures and polished surfaces enhance airflow and cooling efficiency.

• 0dB Silent Cooling: Fans remain off at low temperatures for silent operation and activate when needed for cooling.

• Air Deflecting Fin: V-shaped cutting fins and air vents guide airflow efficiently through the heatsink.

• Ultra-fit Heatpipe: Heatpipes are consolidated to maximize contact with each other and the GPU baseplate, optimizing heat dissipation.

• Nickel-Plated Copper Base: A large base enhances thermal transfer for both GPU and VRAM.

• High-Density Metal Welding: Ensures effective heat dissipation by eliminating gaps between pipes and fins.

• Nano Thermal Paste: Fills microscopic gaps to maximize heat transfer and thermal efficiency.

• Premium Thermal Pad: Facilitates better heat transfer from components to the heatsink.

• Precise Screw Torque: Ensures optimal mounting pressure for improved thermal efficiency and GPU safety.

Structural Integrity and Design of the AsRock AMD Radeon Computer Graphics Card

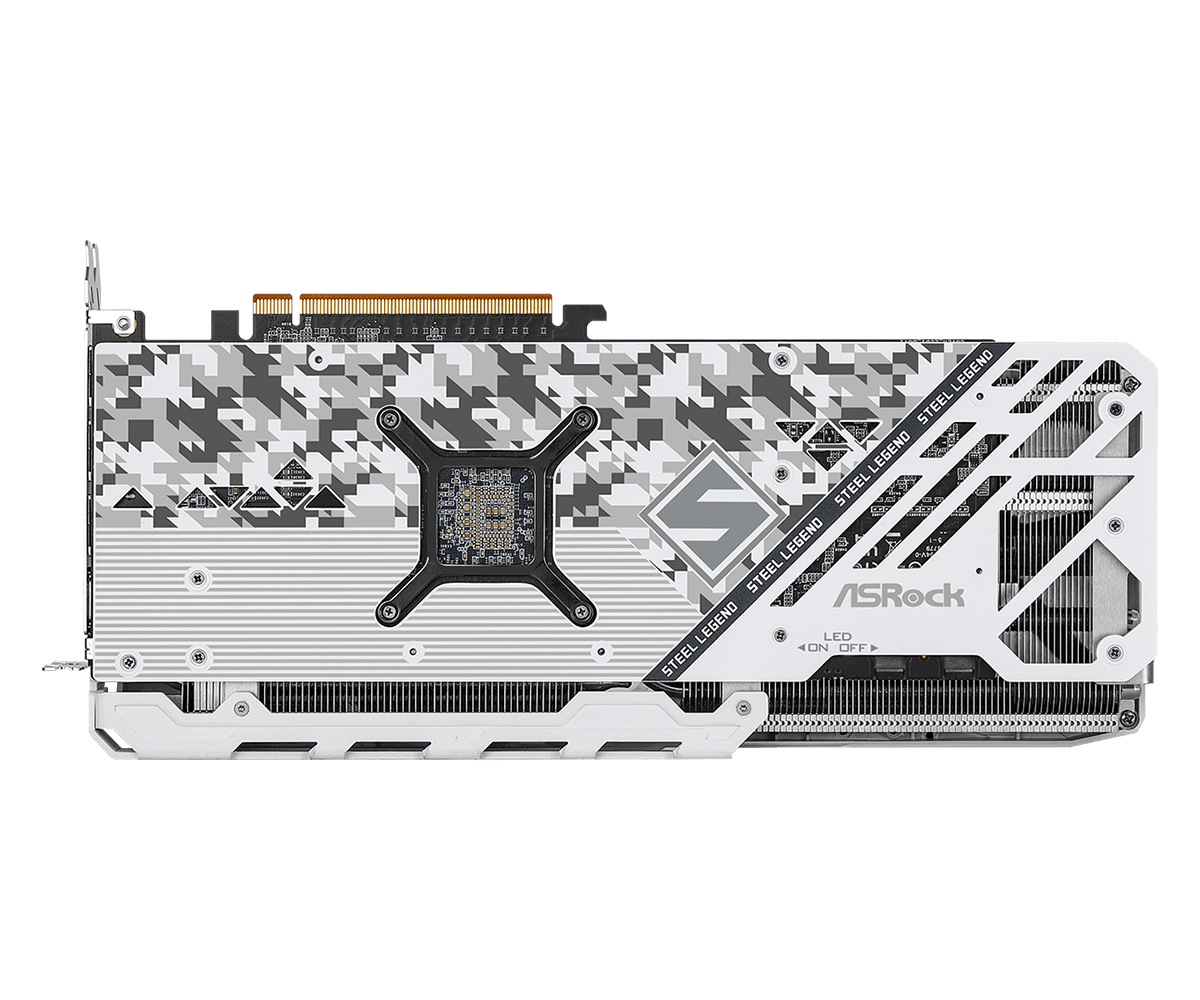

• Stylish Metal Backplate: Prevents PCB bending and adds a visually appealing design element.

• Reinforced Metal Frame: Enhances structural integrity to prevent sagging and bending.

• Matte Black PCB: Features a sleek black and copper color scheme to match high-end components.

• High-Density Glass Fabric PCB: Reduces gaps between PCB layers, protecting against electrical shorts caused by humidity.

Power Delivery and Efficiency of the AsRock Computer Gaming Motherboard

• Dr. MOS: Integrated power stage solution optimized for synchronous buck-set down voltage applications, delivering higher current and improved thermal performance.

• Premium 90A Power Choke: Provides enhanced Vcore voltage to the graphics card, improving performance and stability.

• 2oz Copper PCB: Utilizes high-quality copper materials for better energy efficiency and lower temperatures during overclocking.

Display and Connectivity of the AsRock Steel Legend Series Motherboard

• Multiple Monitor Support: Supports up to 4 monitors simultaneously.

• 8K Resolution Support: Capable of handling 8K video output for an immersive visual experience.

• AMD Eyefinity Technology: Expands the traditional limits of desktop computing by multiplying your screen area.

Software and Tuning of the AsRock RX 7800 XT Steel Legend 16GB OC

• ASRock Tweak 2.0: A user-friendly utility for smart fan speed control and instant performance tweaking.

The AsRock RX 7800 XT Steel Legend 16GB OC Graphics Card combines cutting-edge technology with robust design and advanced cooling solutions, making it an excellent choice for gamers and professionals seeking high performance and reliability.
