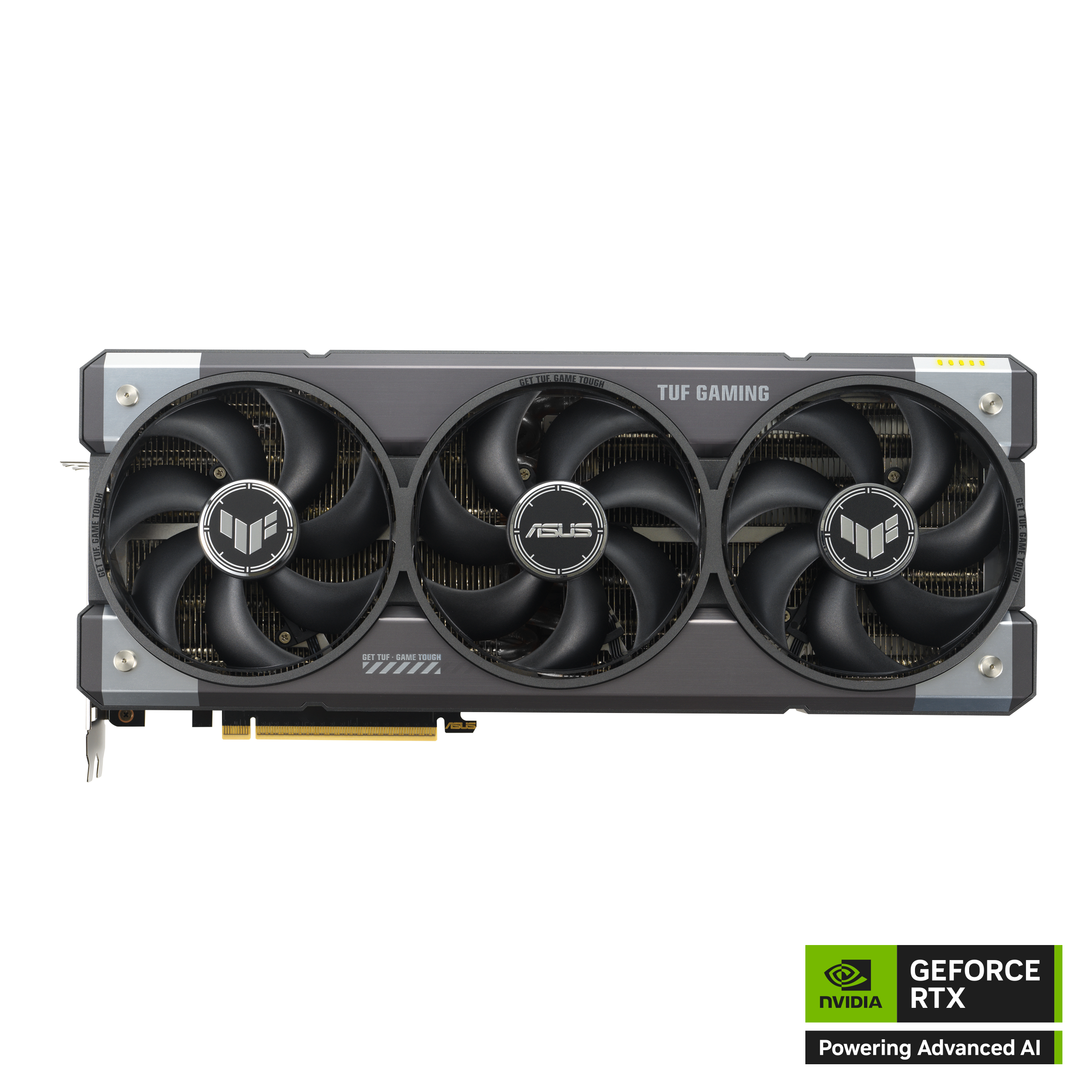

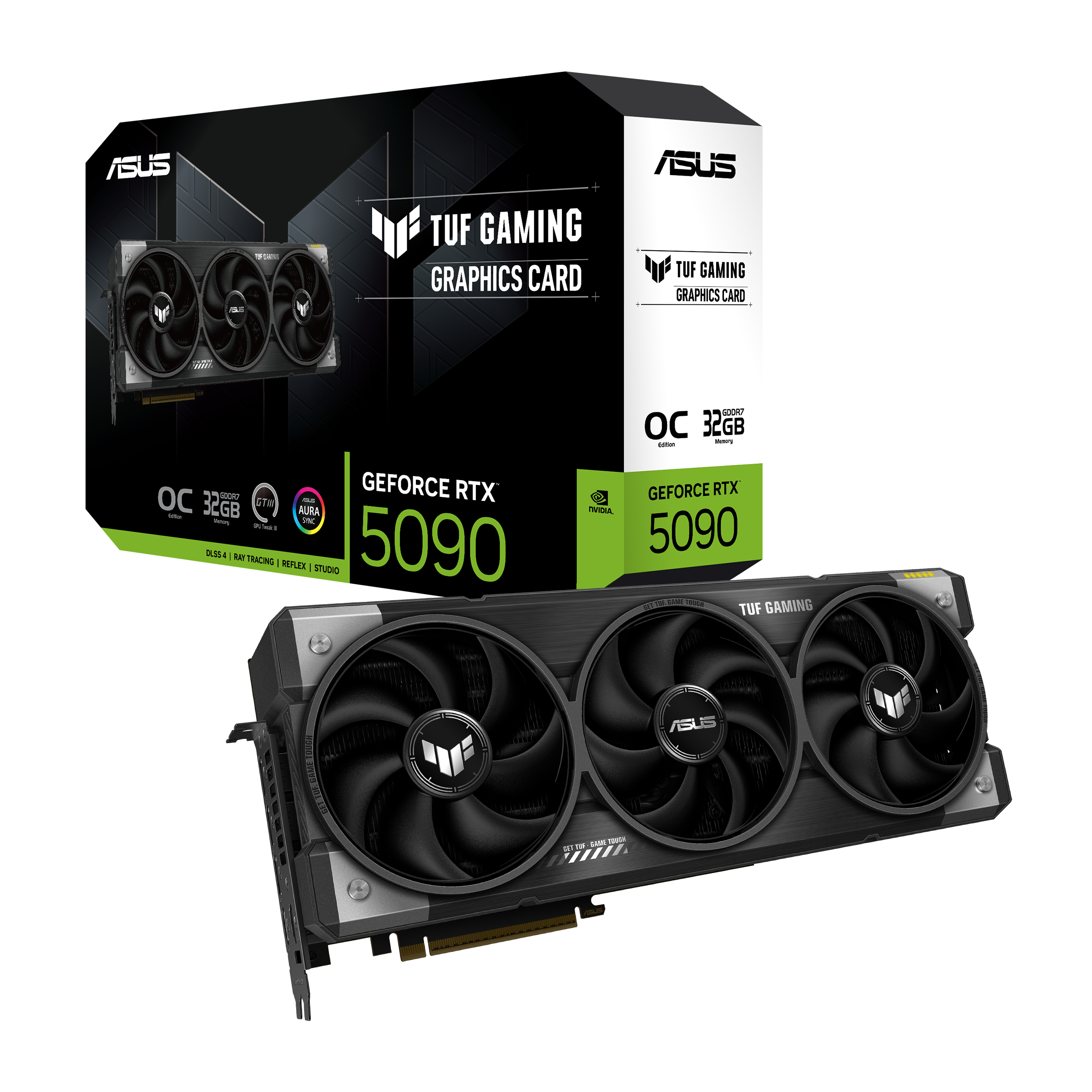

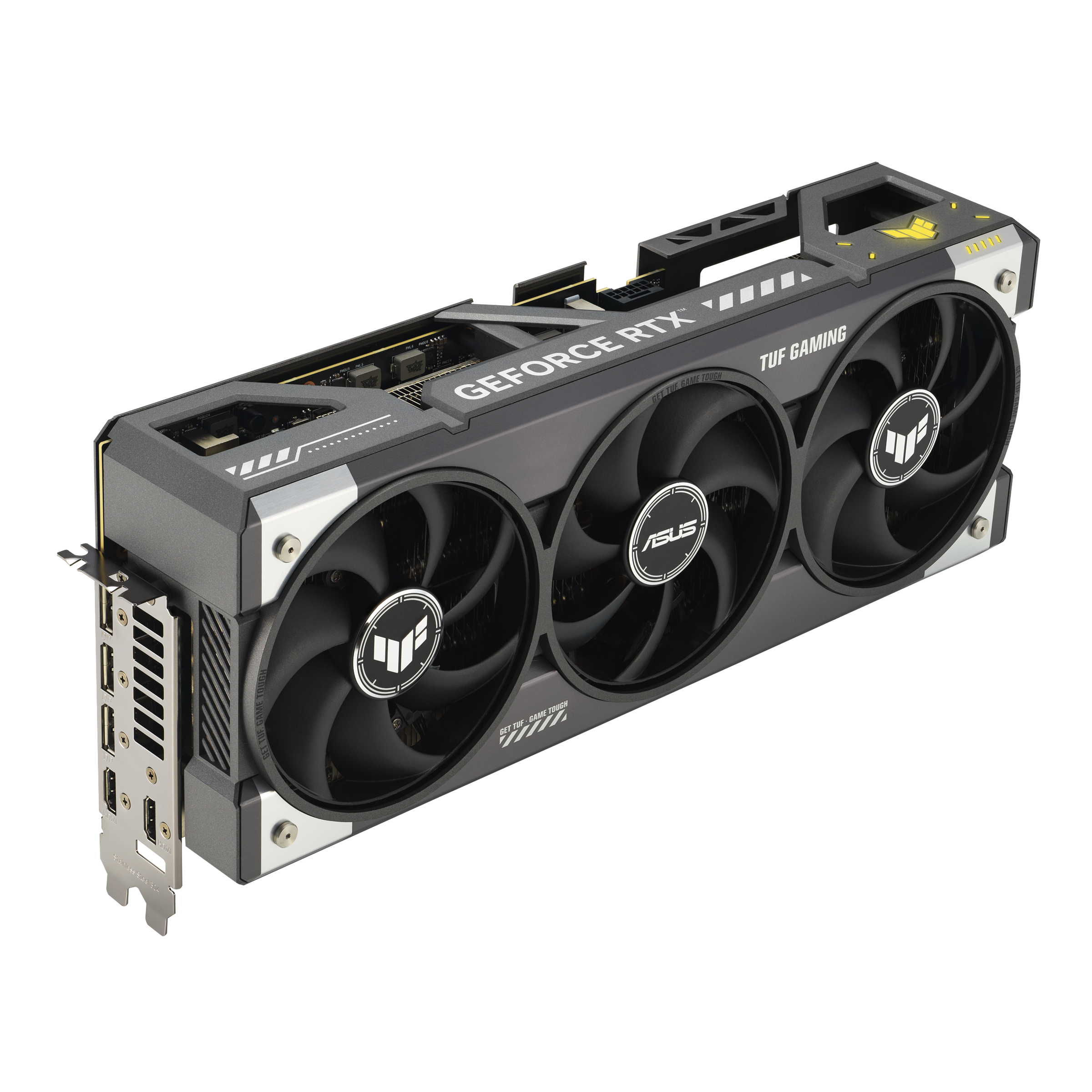

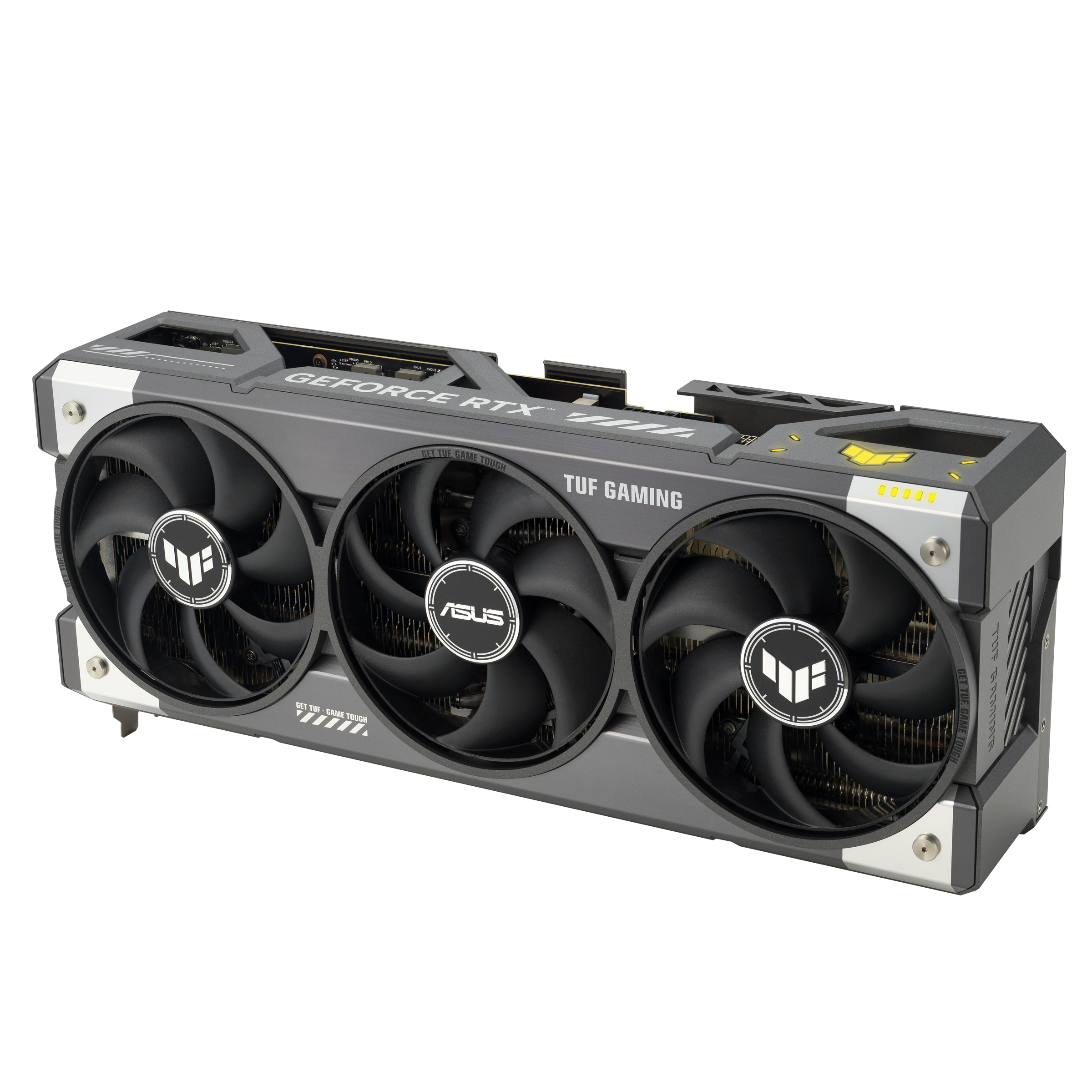

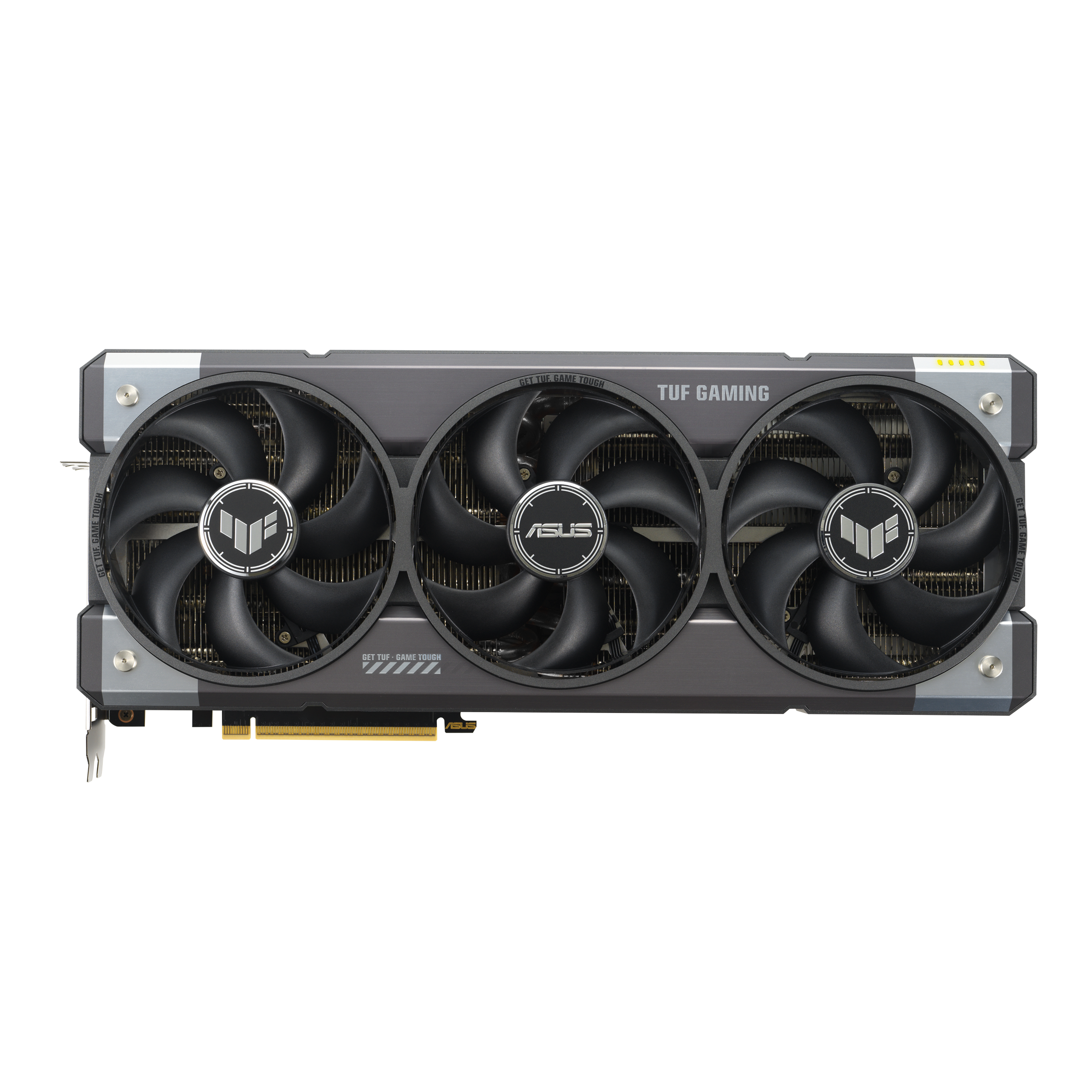

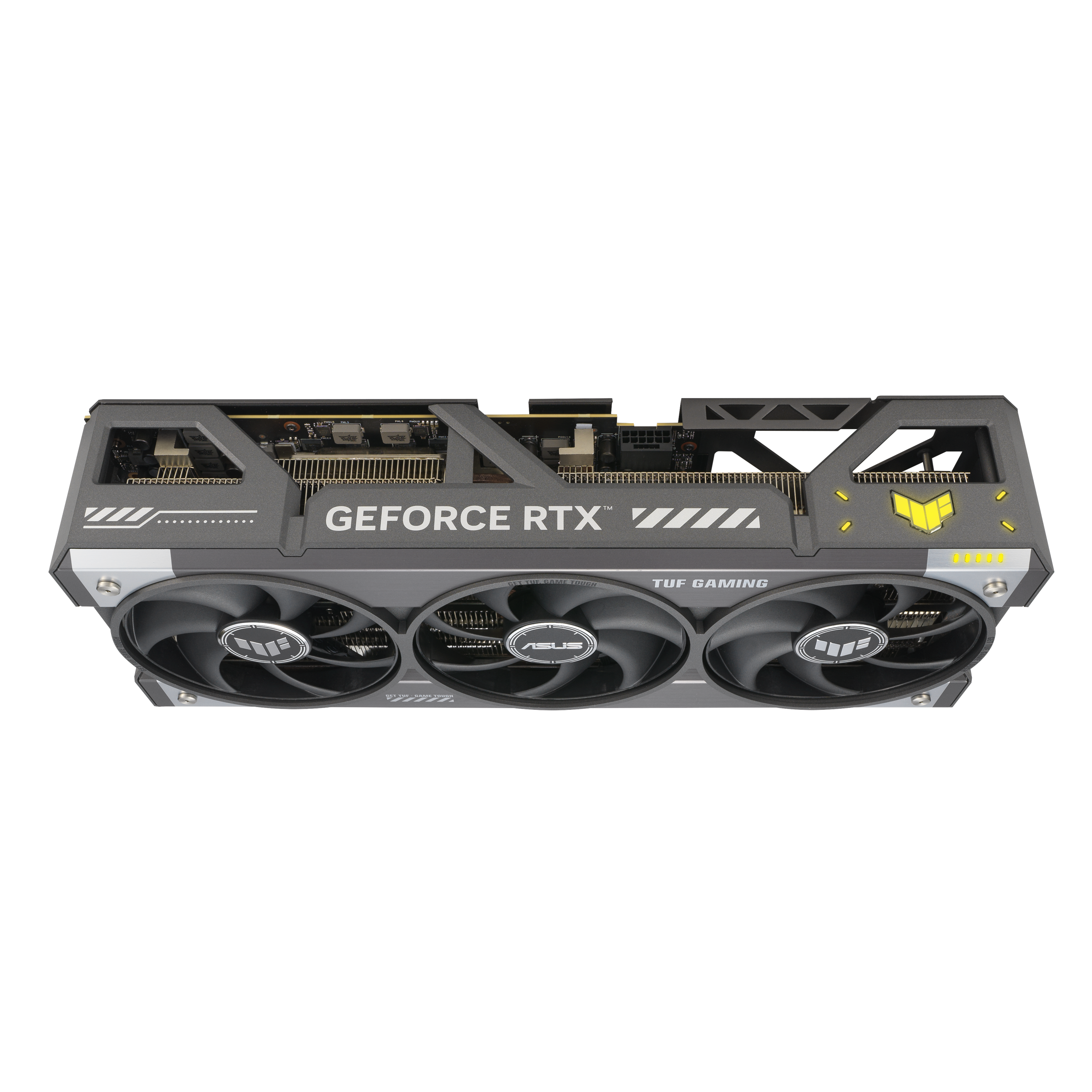

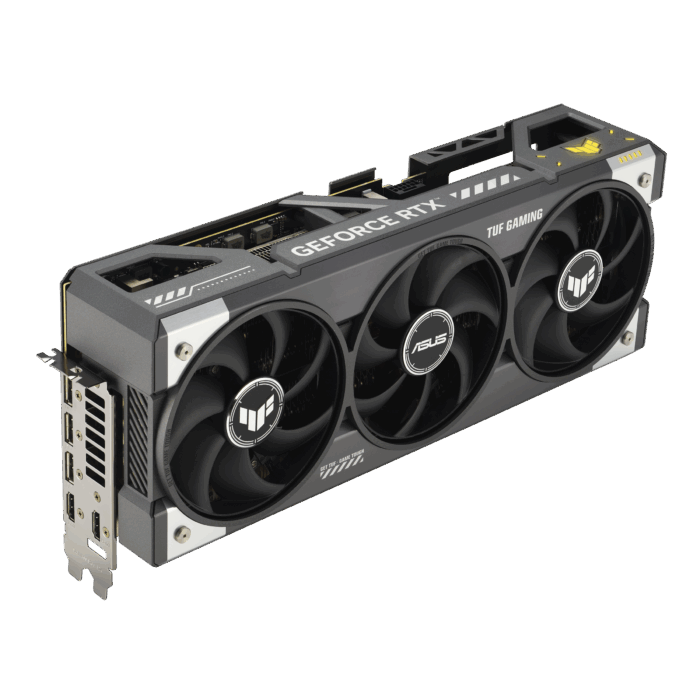

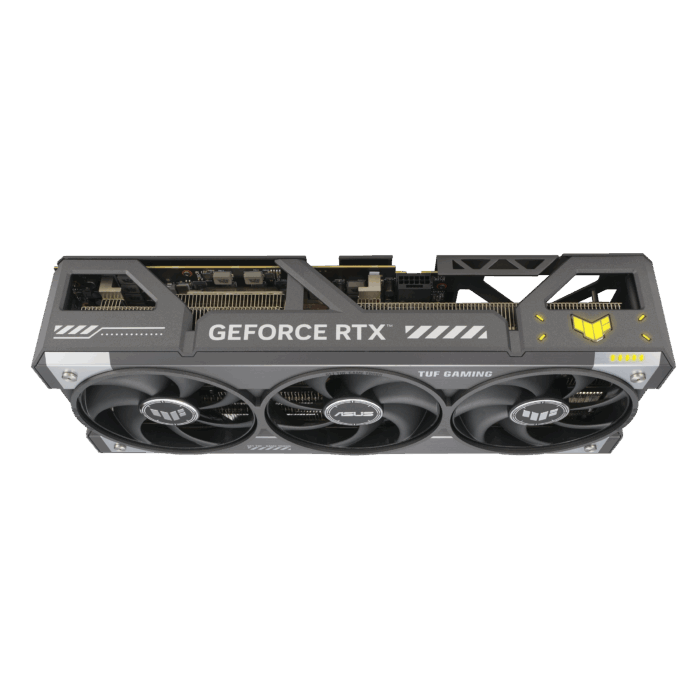

Asus TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition

About Asus TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition

ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC EditionThe ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition is engineered for gamers and creators seeking top-tier performance, durability, and advanced cooling.

Built upon NVIDIA’s cutting-edge Blackwell architecture, this graphics card delivers exceptional AI capabilities, real-time ray tracing, and robust thermal management.

🔧 Key Specifications

• GPU Engine: NVIDIA GeForce RTX 5090

• CUDA Cores: 21,760

• Video Memory: 32GB GDDR7

• Memory Interface: 512-bit

• Memory Speed: 28 Gbps

• Bus Standard: PCI Express 5.0

• Boost Clock: OC Mode: 2580 MHz; Default Mode: 2550 MHz

• AI Performance: 3551 TOPs

• Maximum Resolution: 7680 x 4320 (8K UHD)

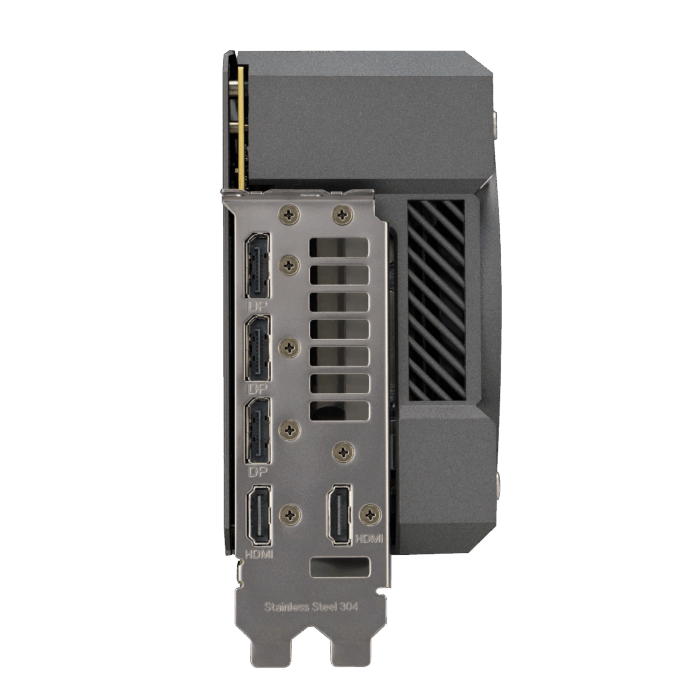

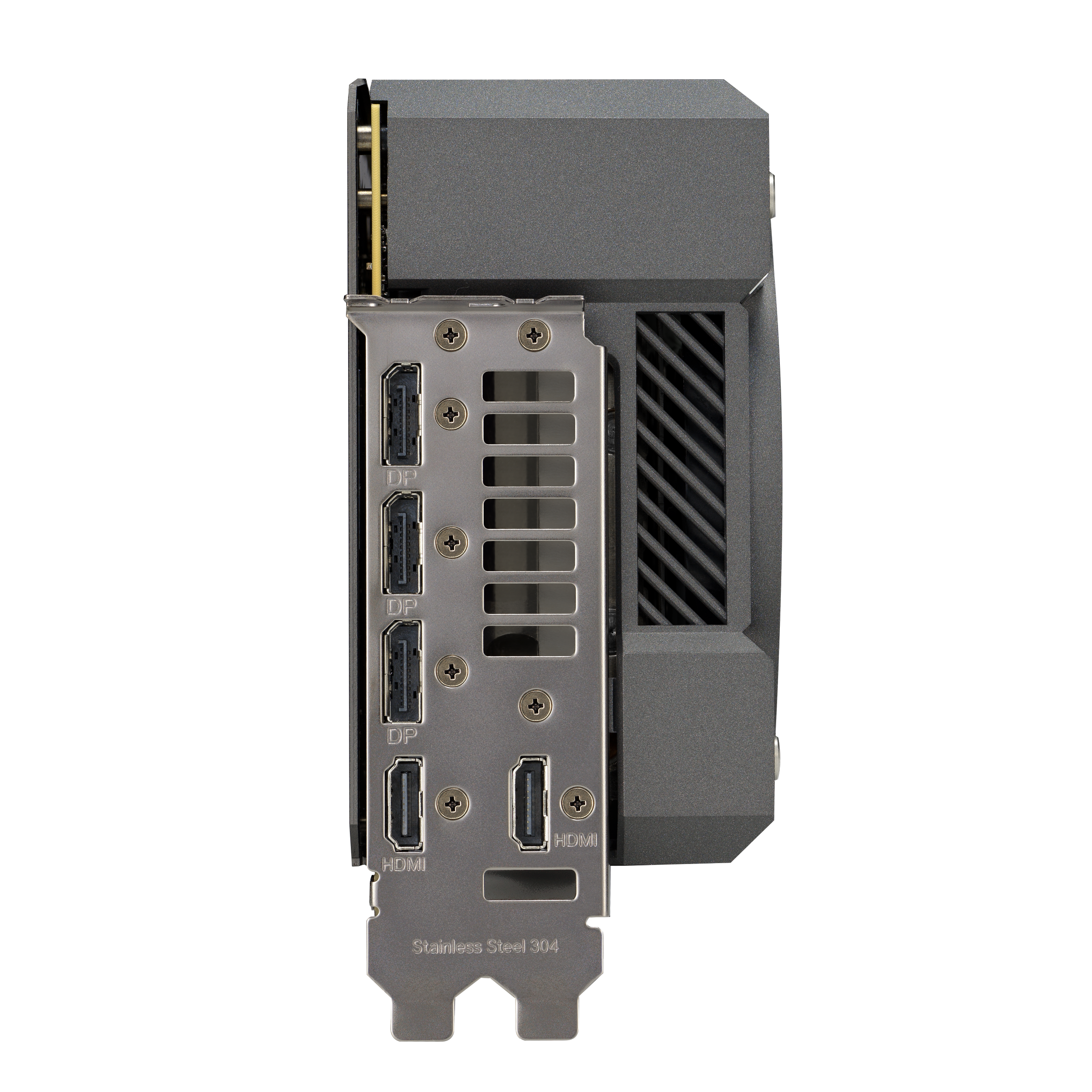

• Display Outputs: 2 x HDMI 2.1b, 3 x DisplayPort 2.1b

• Maximum Display Support: 4

• Power Connectors: 1 x 16-pin

• Recommended PSU: 1000W

• Dimensions: 348 x 146 x 72 mm

• Slot Size: 3.6-slot

• ARGB Lighting: AURA SYNC compatible

🧠 NVIDIA Blackwell Architecture Highlights

• Advanced AI Capabilities: Delivers up to 3551 TOPs for accelerated AI tasks.

• Fifth-Generation Tensor Cores: Optimized for FP4 precision and DLSS 4, enhancing AI-driven graphics performance.

• Fourth-Generation Ray Tracing Cores: Provides real-time ray tracing with improved efficiency.

• DLSS 4 Technology: Incorporates Multi-Frame Generation and Ray Reconstruction for smoother visuals.

• NVIDIA Reflex 2: Reduces system latency, offering quicker response times in competitive gaming.

❄️ Cooling and Thermal Management

• MaxContact Technology: Ensures a 5% increase in heat spreader surface area for better thermal transfer.

• 12 Heatpipes & Vapor Chamber: Efficiently dissipates heat from the GPU, maintaining optimal temperatures.

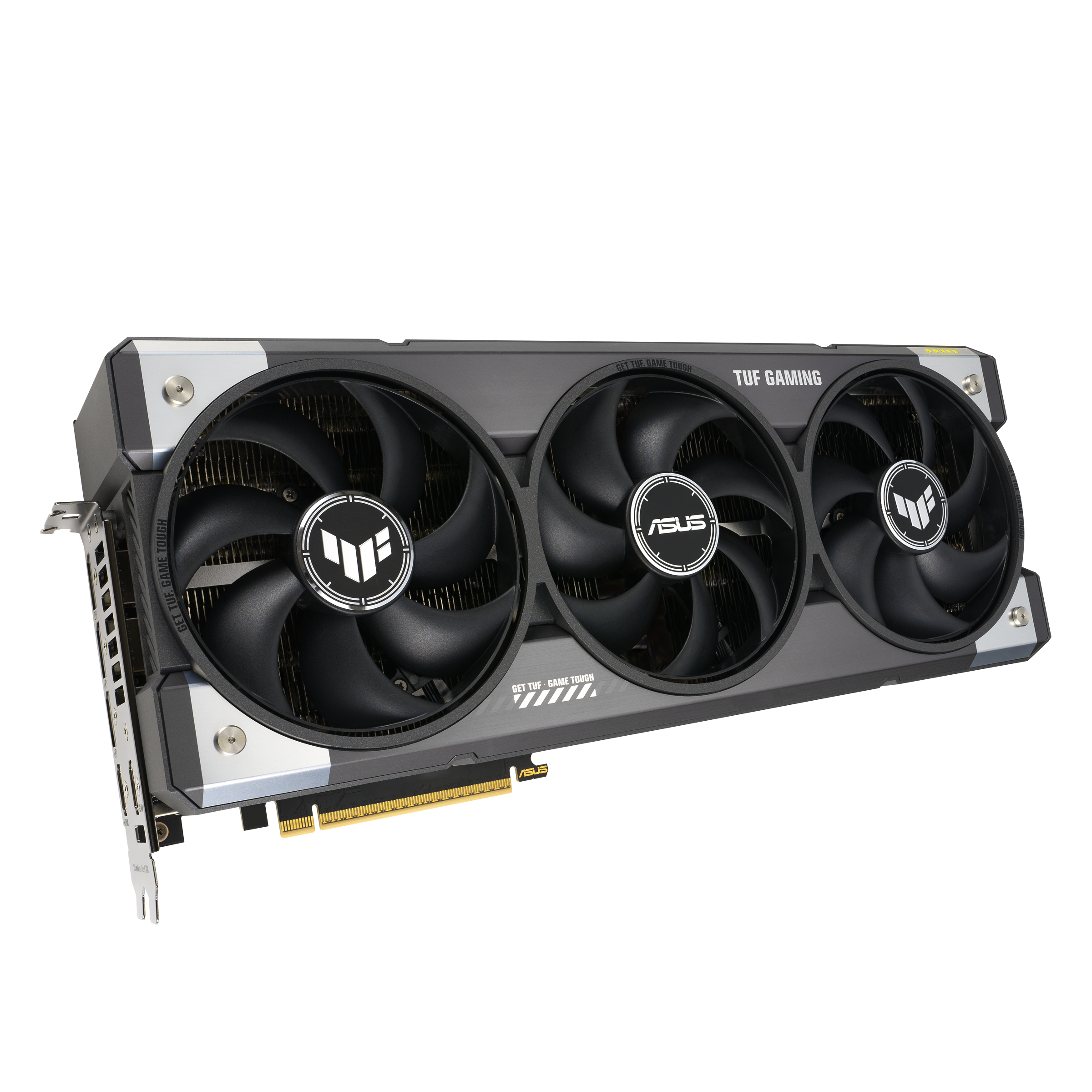

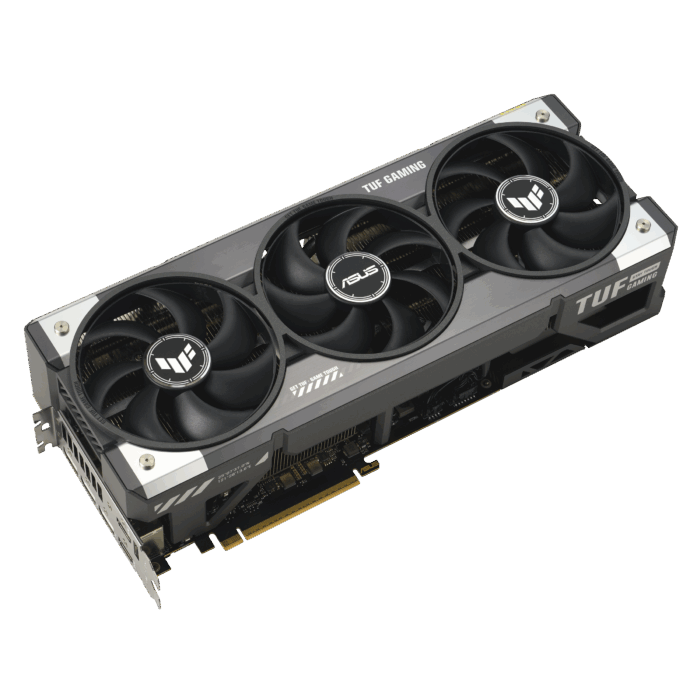

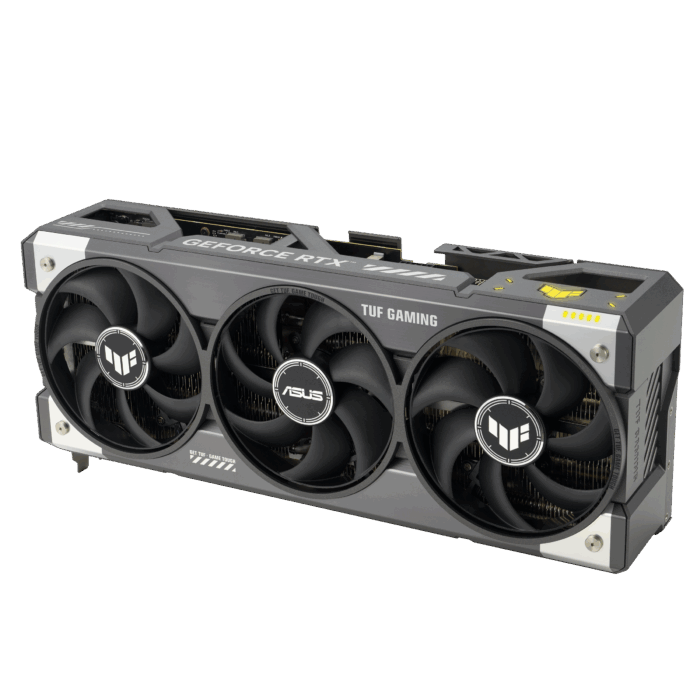

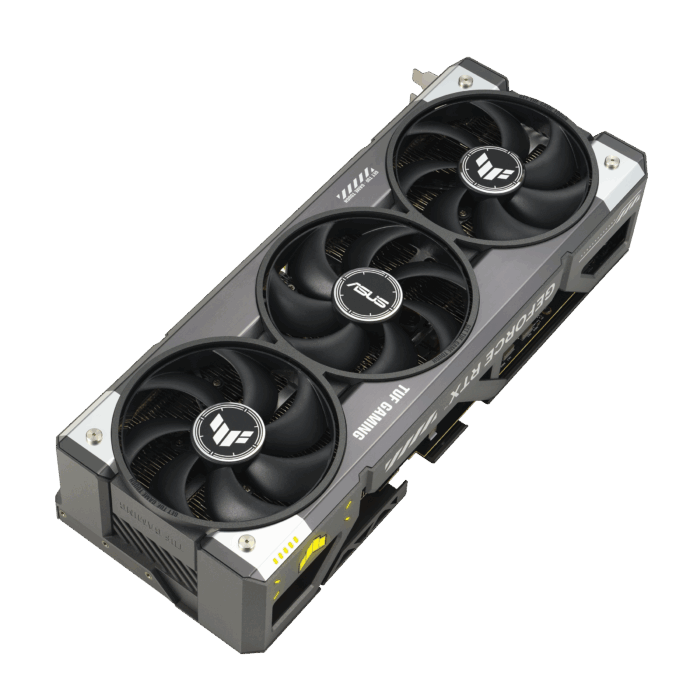

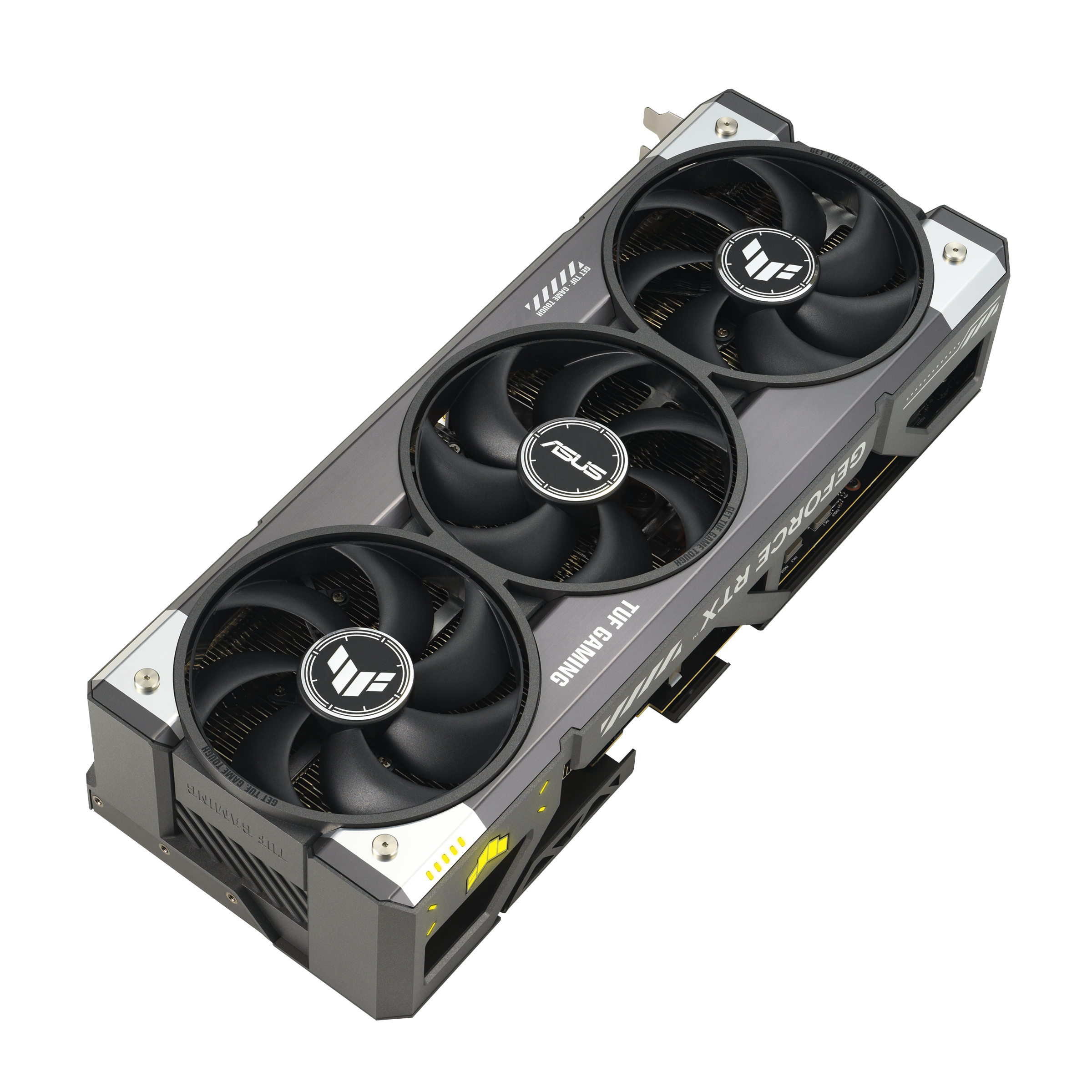

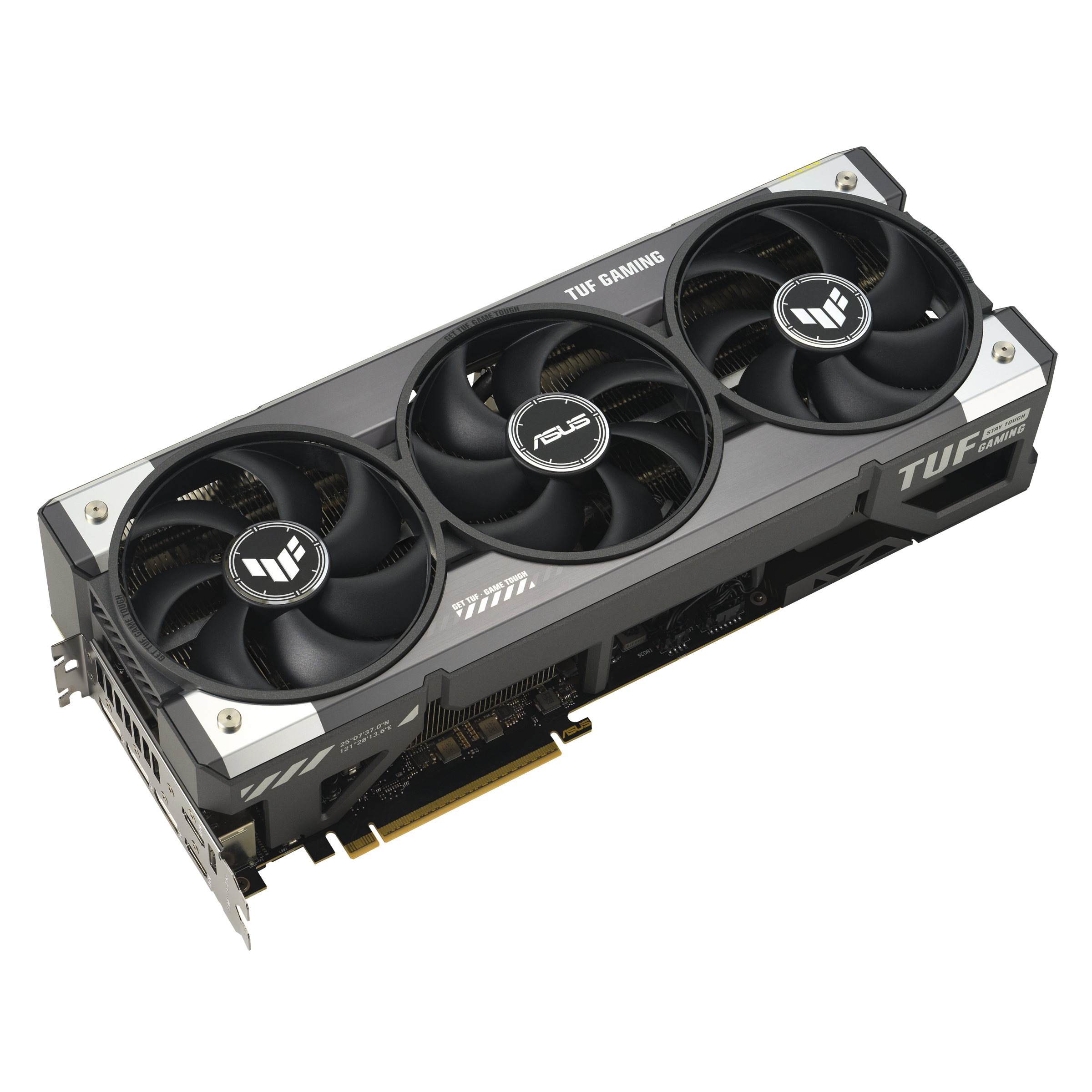

• Axial-Tech Fans: Triple-fan design with dual-ball bearings, delivering up to 23% more airflow.

• Fan Behavior:

  • Outer fans spin counterclockwise to reduce turbulence.

  • Fans stop below 50°C for silent operation during light tasks.

  • Fans resume above 55°C, balancing performance and acoustics.

• Phase-Change Thermal Pad: Enhances heat transfer between the GPU and heatsink.

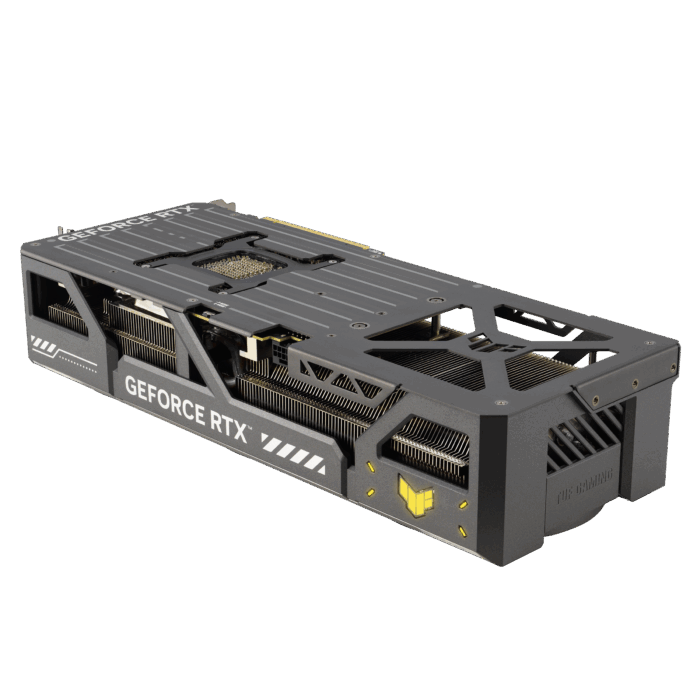

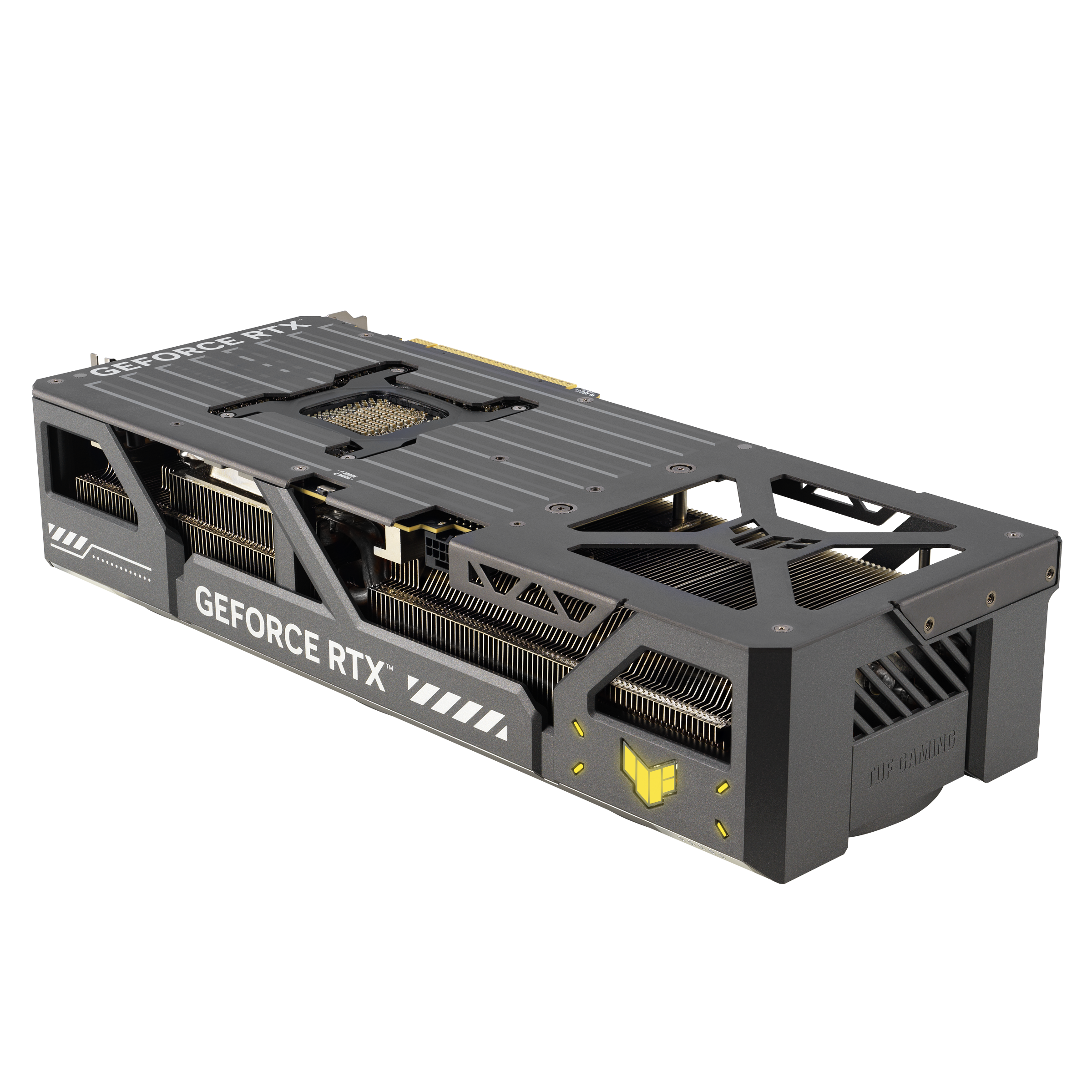

• Vented Exoskeleton: Die-cast shroud and aluminum backplate with large vents improve structural integrity and heat dissipation.

🛡️ Durability and Build Quality

• Military-Grade Components:

  • TUF chokes and MOSFETs ensure stable power delivery.

  • 5K black metallic capacitors offer 52% wider temperature tolerance and 2.5x longer lifespan.

• Protective PCB Coating: Shields against moisture, dust, and debris, reducing the risk of short circuits.

• Auto-Extreme Technology: Automated manufacturing process enhances reliability and reduces environmental impact.

• GPU Bracket: Provides uniform mounting pressure and additional stability.

🎮 Gaming and Creative Advantages

• High-Resolution Gaming: Supports up to 8K resolution, delivering immersive visuals.

• AI-Enhanced Graphics: DLSS 4 and Tensor Cores provide smoother frame rates and improved image quality.

• Ray Tracing: Real-time ray tracing capabilities offer realistic lighting and shadows.

• Content Creation:

  • Accelerates workflows in video editing, 3D rendering, and graphic design.

  • Compatible with NVIDIA Studio drivers for optimized performance in creative applications.

• Streaming: NVIDIA Broadcast features AI-powered tools for enhanced live streaming experiences.

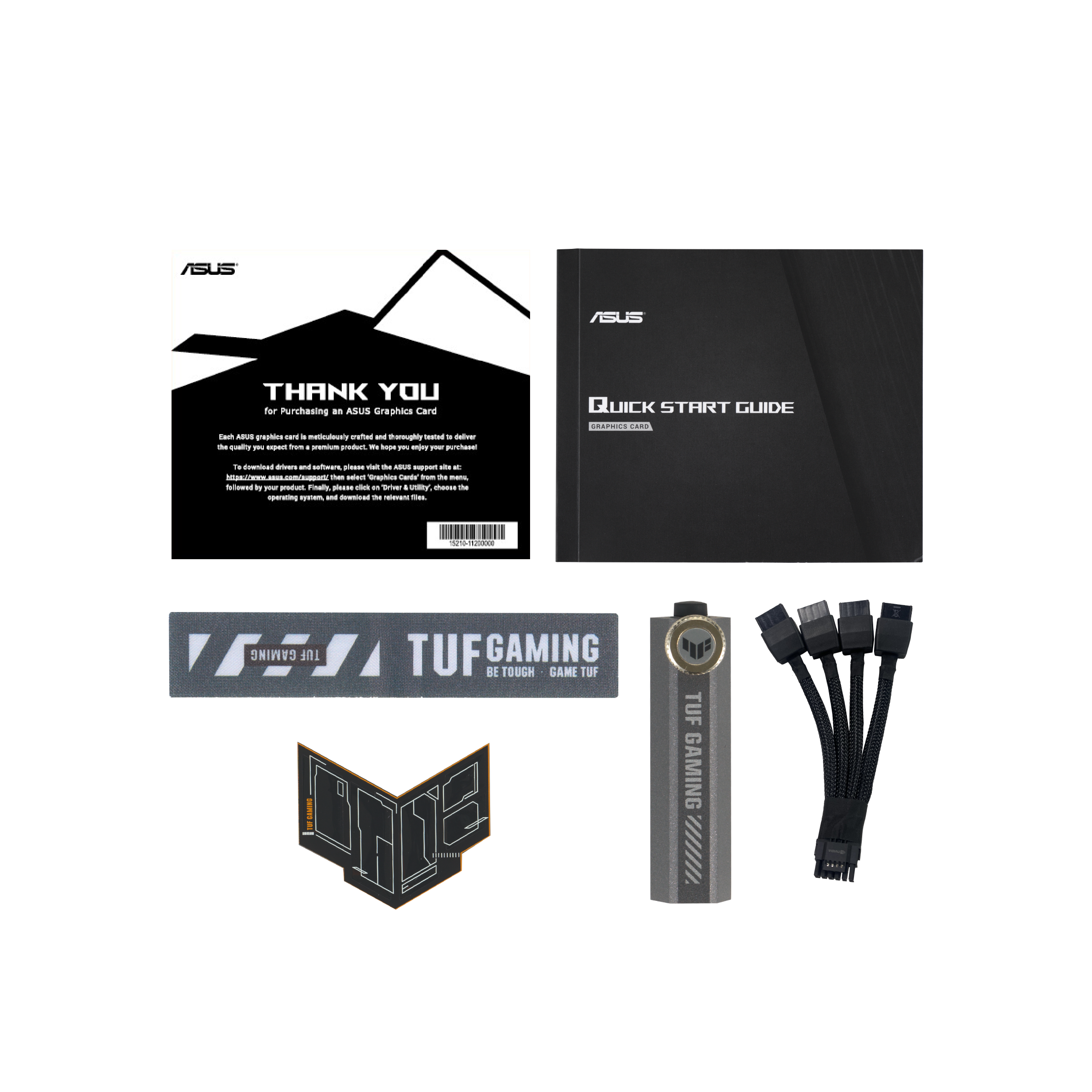

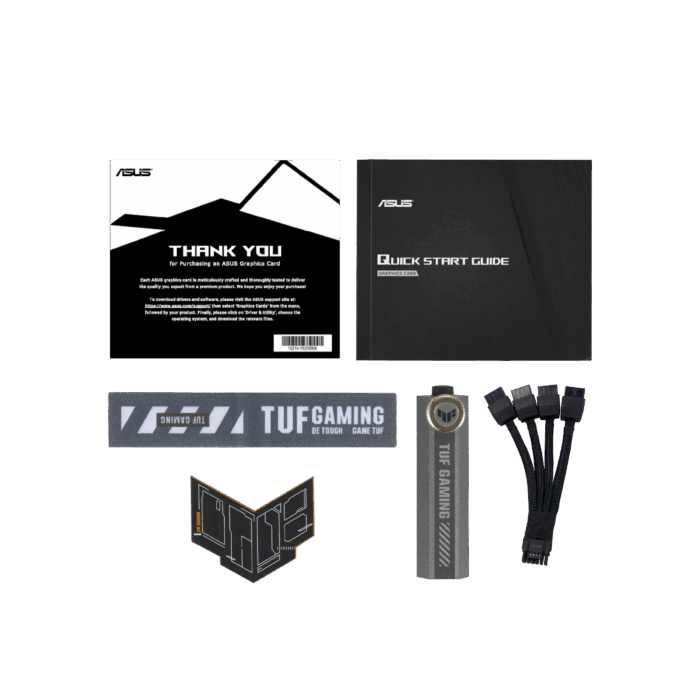

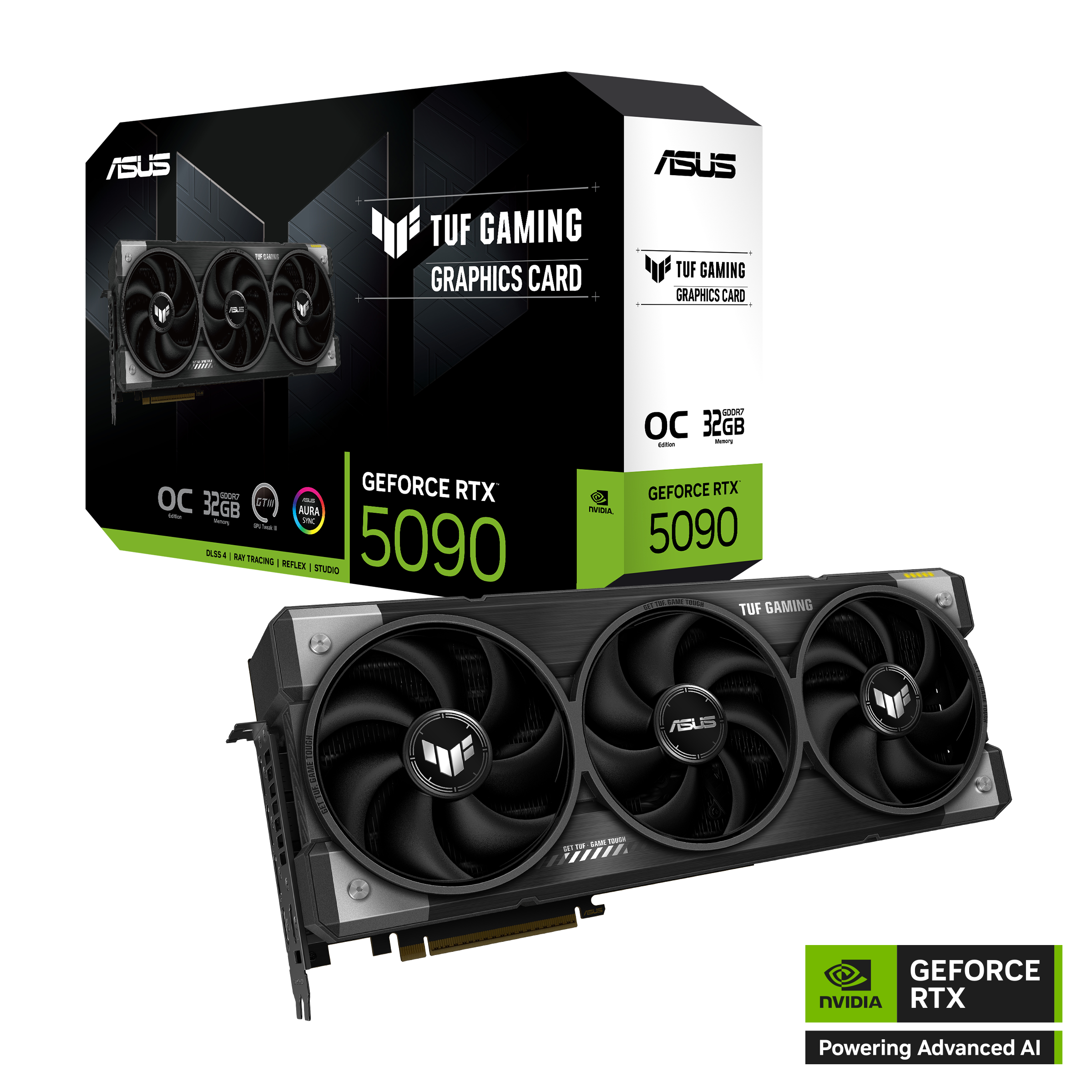

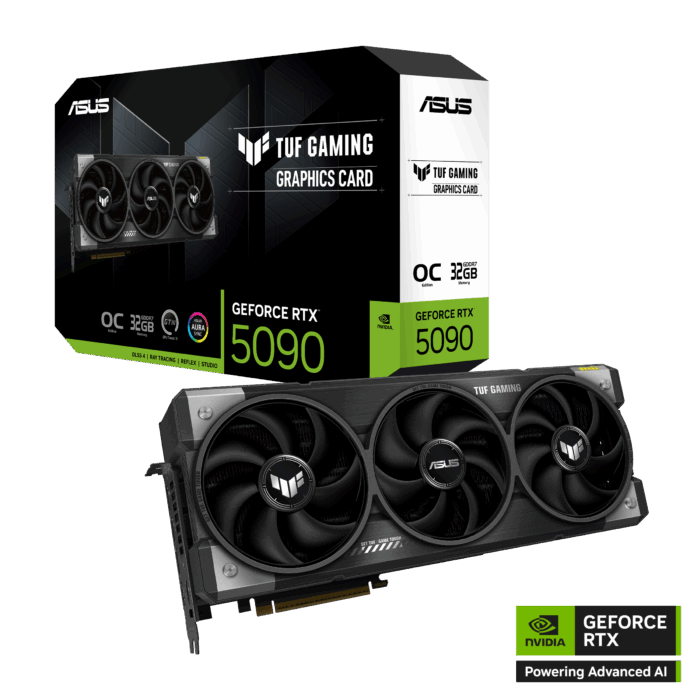

📦 Package Contents

• ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition Graphics Card

• TUF Graphics Card Holder

• TUF Velcro Hook & Loop

• TUF Magnet

• TUF Gaming Certificate

• Thank You Card

• Adapter Cable (1 to 4)

• SpeedSetup Manual

🛠️ Software and Utilities

• ASUS GPU Tweak III: Offers real-time monitoring, performance tuning, and thermal controls.

• MuseTree: AI-powered tool to enhance creative workflows.

• NVIDIA Drivers: Access to Game Ready and Studio Drivers for optimal performance.B&H Photo Video+1investopedia.com+1ASUS Global

🔌 Power Supply Recommendations

• Recommended PSU: 1000W

• Compatible PSU Series:

  • TUF Gaming Gold Series (750W to 1200W)

  • ROG Strix Platinum Series (850W to 1200W)

  • ROG Thor III Series (1000W to 1600W)

• Features:

  • 80 Plus Gold/Platinum/Titanium certifications

  • ATX 3.0/3.1 standards

  • Military-grade components for enhanced durability

  • Aura Sync compatibility for synchronized RGB lighting

✅ Conclusion

The ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition stands as a powerhouse for gamers and creators alike.

With its robust build quality, advanced cooling solutions, and cutting-edge NVIDIA Blackwell architecture, it delivers exceptional performance and reliability.

Whether you’re diving into high-resolution gaming, engaging in complex creative projects, or exploring AI-driven applications, this graphics card is designed to meet and exceed your expectations.
