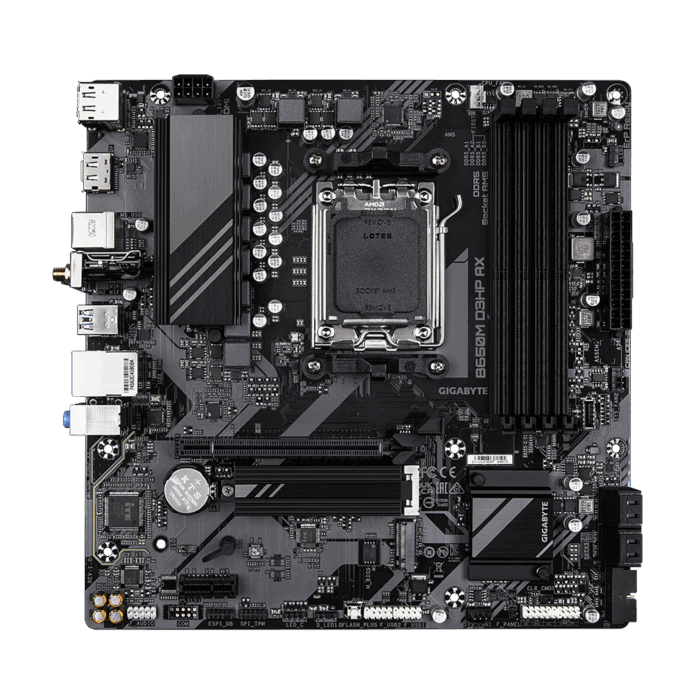

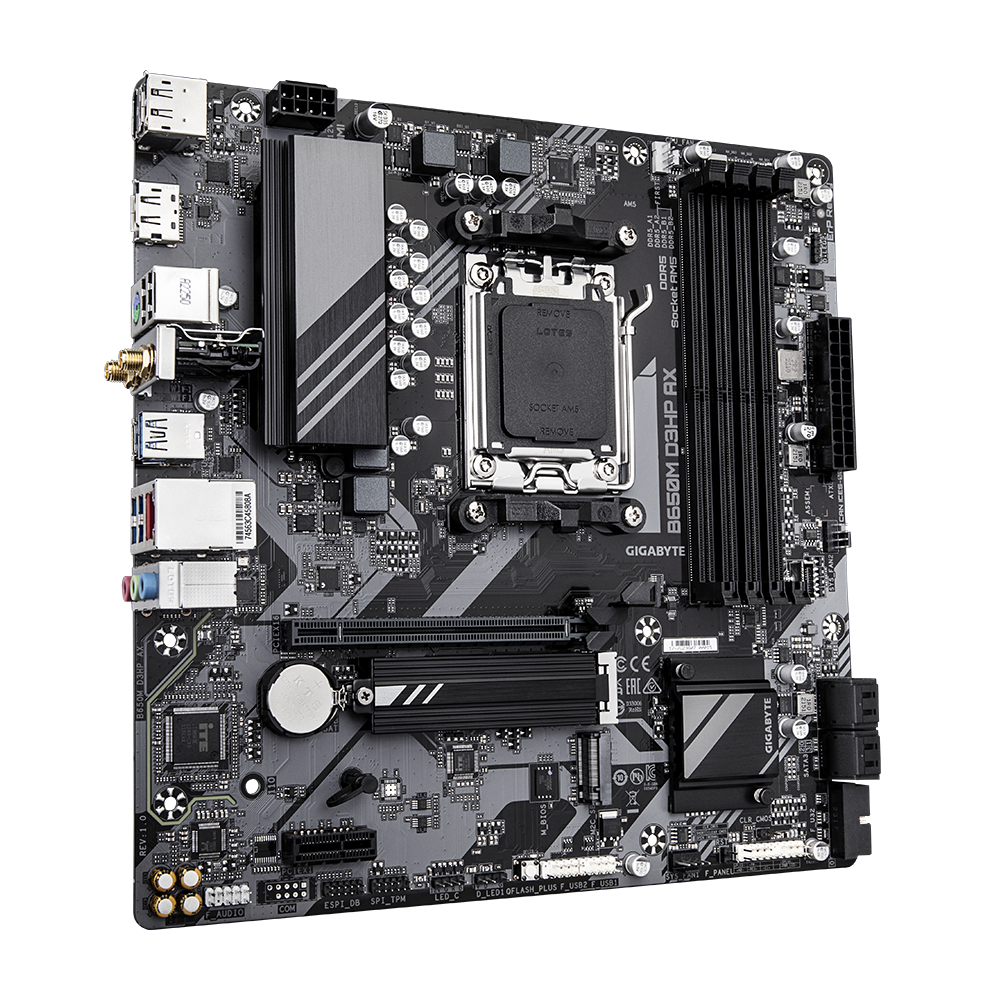

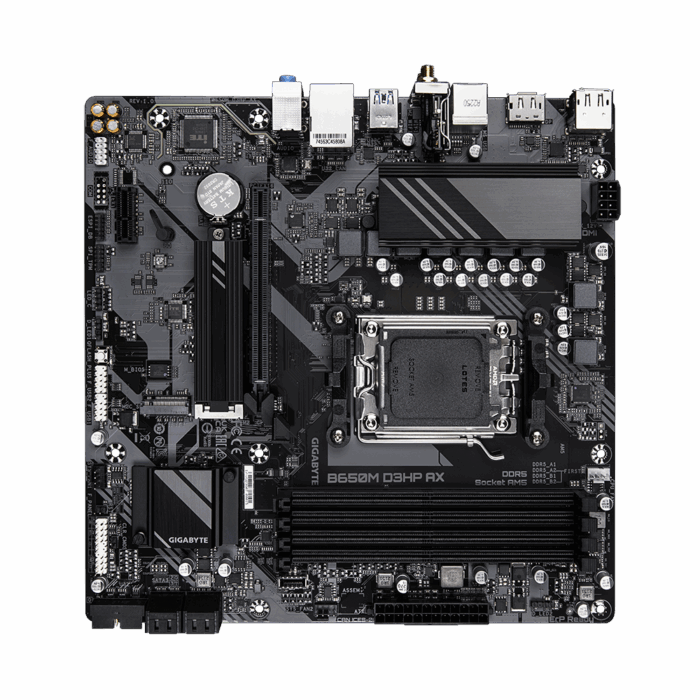

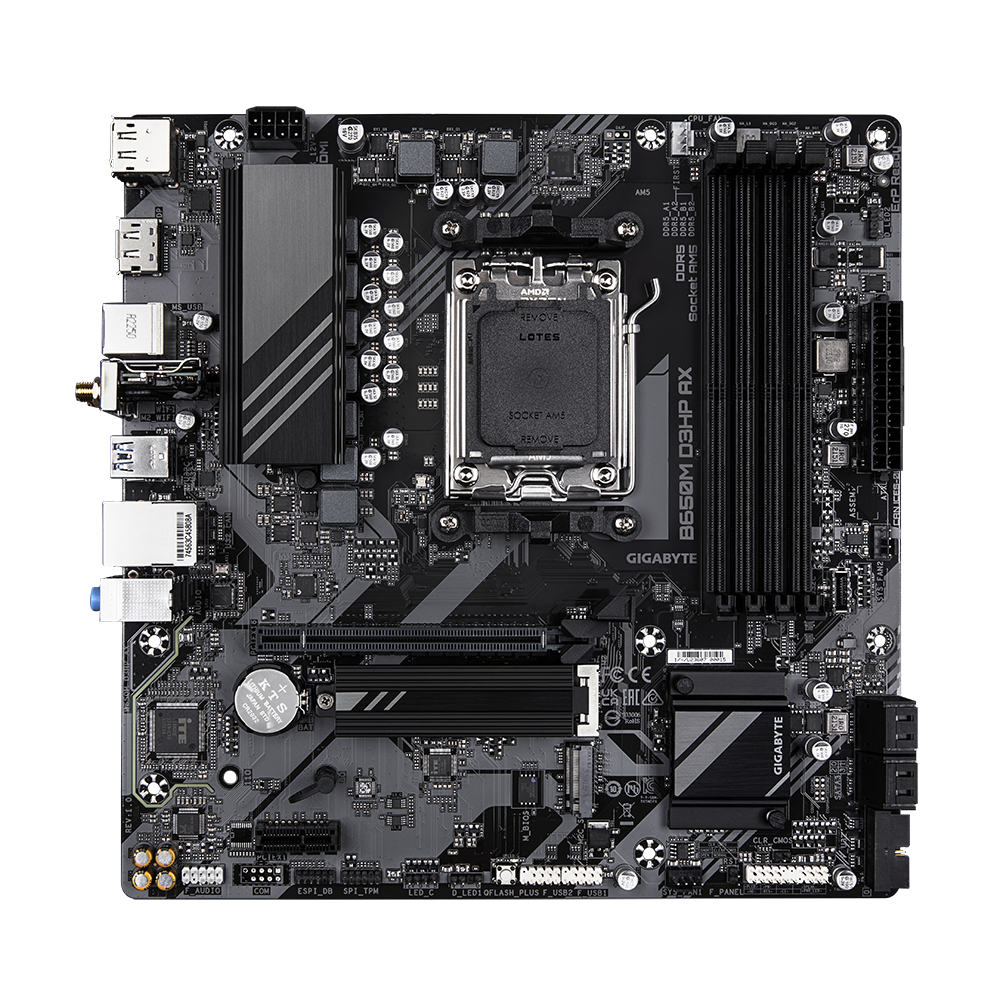

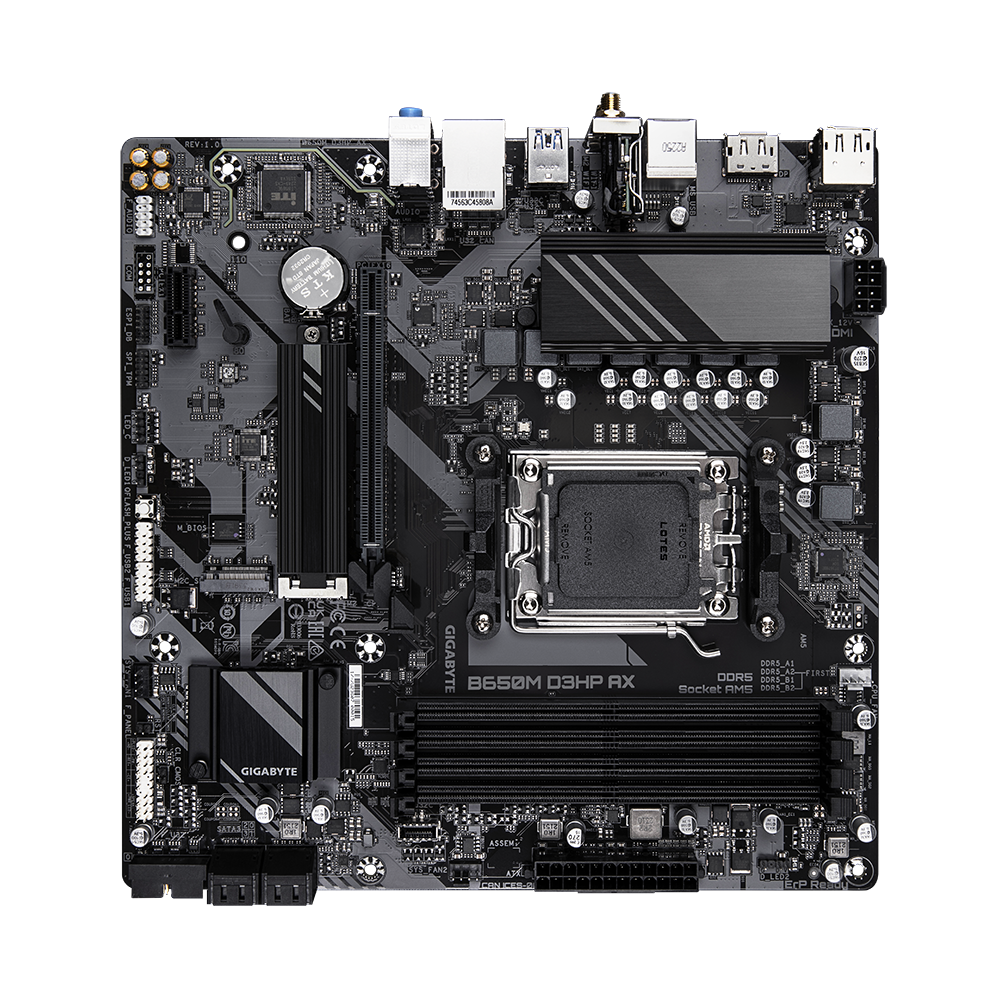

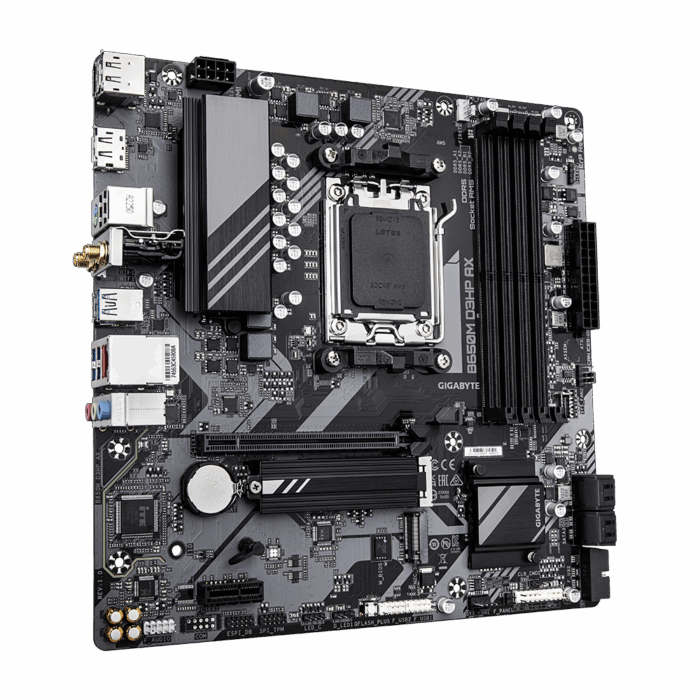

Gigabyte B650M D3HP AX Motherboard

About Gigabyte B650M D3HP AX Motherboard

The Gigabyte B650M D3HP AX Motherboard is a high-performance, Micro-ATX motherboard built for next-gen AMD Ryzen processors under the AM5 platform.

Engineered with powerful features and refined durability, it offers users future-ready connectivity, hardware-software innovations, and full-scale system control through the GIGABYTE Control Center.

Ideal for gamers, creators, and performance enthusiasts alike, this motherboard ensures a cutting-edge, stable platform for every demanding workload.

Key Features of the Gigabyte B650M D3HP AX Motherboard

1. AM5 CPU Socket with Ryzen 7000/8000/9000 Support
   – Compatible with AMD’s latest Ryzen processors, the B650M D3HP AX is primed for ultra-high performance in gaming, content creation, and heavy multitasking environments.

2. Robust Power Delivery – 5+2+2 Phase Digital VRM
   – Ensures clean, consistent power to the CPU, memory, and chipset. Designed for long-term reliability and excellent thermal performance even under overclocked conditions.

3. Dual PCIe Gen4 M.2 Storage Slots
   – Supports blazing-fast NVMe SSDs with PCIe 4.0 x4/x2 interfaces, enabling ultra-quick load times, improved responsiveness, and future-proofed bandwidth.

4. DDR5 Memory Support up to 192 GB
   – Fully supports high-frequency DDR5 memory with up to 8000+ MHz (OC) via AMD EXPO/XMP profiles, with advanced PMIC support for fine-grained voltage control.

5. Integrated Wi-Fi 6E + Bluetooth 5.3 + 2.5 GbE LAN
   – Combines the latest networking technologies for seamless gaming, streaming, and multitasking experiences.

6. Multiple Display Output Options
   – Comes with DisplayPort 1.4 and HDMI 2.1, supporting high-resolution multi-monitor setups up to 4K@144Hz.

Performance & Durability of the Gigabyte AMD Series Desktop Motherboard

1. Optimized Power Architecture
   – The Gigabyte B650M D3HP AX Motherboard features an advanced digital power design using DrMOS and premium capacitors, ensuring efficient energy delivery under high-load scenarios.

2. Solid Pin Power Connectors
   – Prevents pin deformation, resists oxidation, and ensures better electrical conductivity, contributing to system stability under load.

3. Advanced PCB Layers with 2X Copper Design
   – Enhances signal integrity, lowers impedance, and assists in effective heat dissipation, especially during overclocking or sustained peak usage.

4. Smart Fan 6 with Hybrid Headers
   – Offers precision thermal management with temperature sensors and fan-stop technology. Keeps noise down and cooling efficiency high.

5. Q-Flash Plus
   – Allows BIOS updates without installing a CPU, GPU, or memory—an invaluable feature for hassle-free system maintenance.

Future-Ready Connectivity present in the Gigabyte AMD Ryzen Series Desktop Motherboard

1. PCIe 4.0 x16 Graphics Support with EZ-Latch
   – Ensures compatibility with high-end GPUs while the latch makes graphics card removal easy and tool-free.

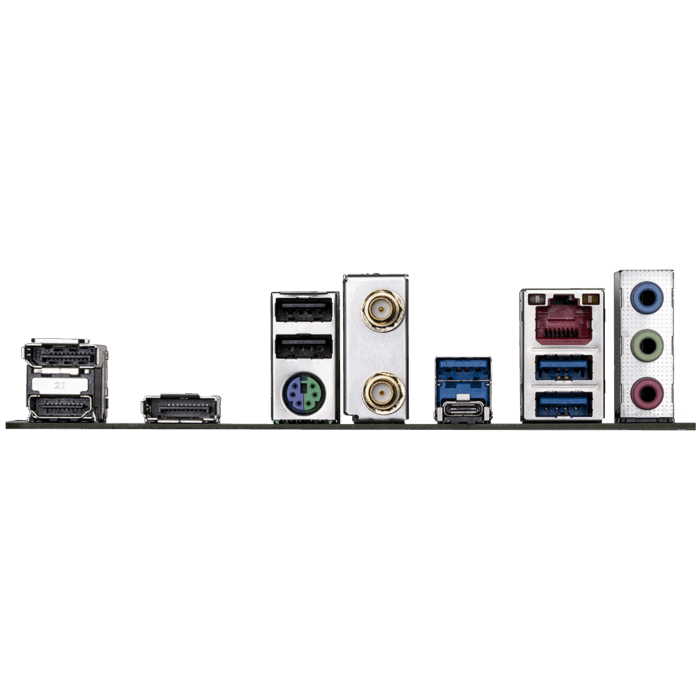

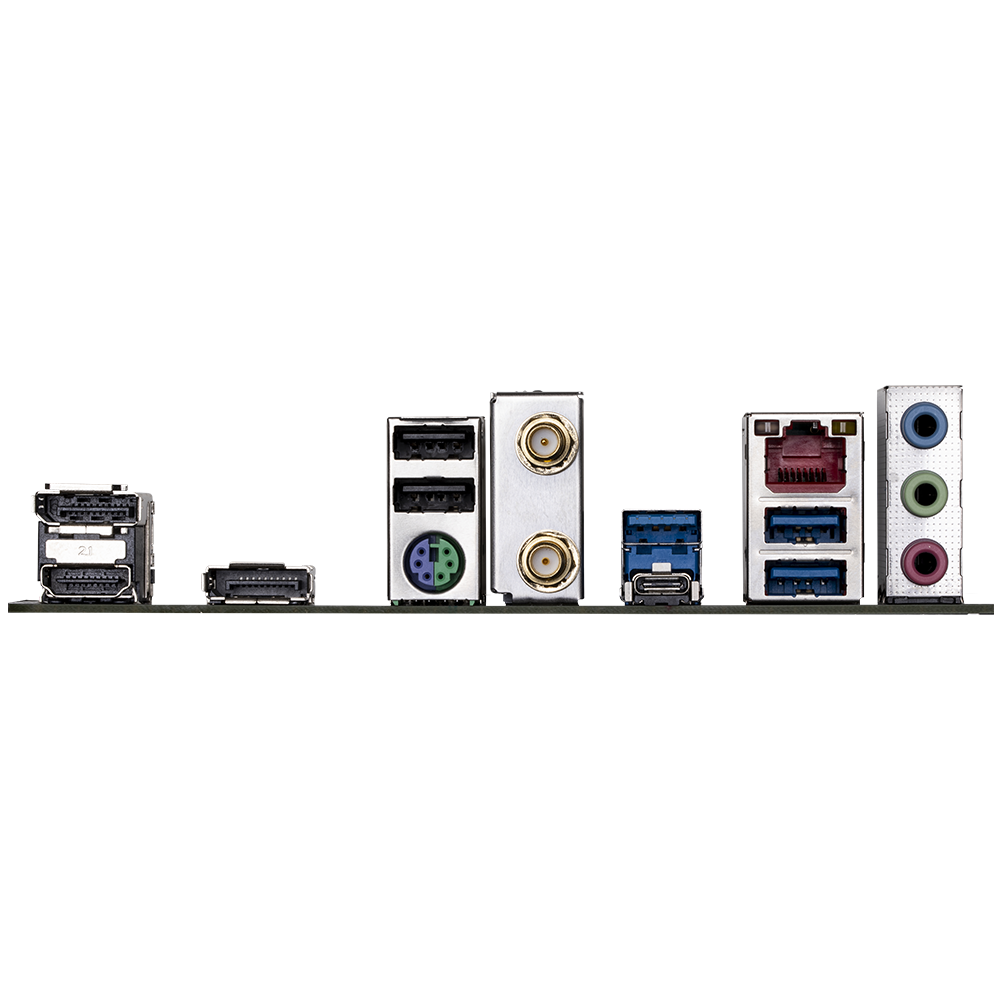

2. USB-C & USB 3.2 Gen 1 Ports
   – High-speed USB connectivity on both front and rear I/O for fast data transfer and peripheral support.

3. 4× SATA 6 Gb/s Ports with RAID Support
   – Ensures legacy storage compatibility with support for RAID 0, 1, and 10.

4. Triple Display Output
   – With HDMI and 2× DisplayPort outputs, users can connect up to three monitors simultaneously for extended desktop experiences.

5. RGB Fusion Support
   – Includes 2× Addressable RGB and 1× RGB headers for vibrant lighting customization, compatible with a range of ARGB devices.

Innovative Hardware & BIOS Solutions possible by the Gigabyte Durable Performance Desktop Motherboard

1. EZ-Latch PCIe Slot Design
   – A tool-less latch that makes installing and removing your graphics card safer and faster.

2. GIGABYTE UEFI BIOS
   – Offers a clean, intuitive UI with advanced features like memory timing control, fan tuning, and voltage adjustment for enthusiasts and first-time builders.

3. Active Voltage Management
   – Fine-tune power and stability parameters through the BIOS for advanced overclocking and precision tuning.

4. Smart Backup & BIOS Recovery
   – Dual BIOS capabilities protect your system against failed updates or corrupted firmware changes.

5. Debug-Friendly Diagnostics
   – Onboard LED indicators provide quick diagnostic readouts for CPU, RAM, VGA, and boot processes—ideal for troubleshooting.

GIGABYTE Control Center (GCC) functioning in the Gigabyte GDDR5 Desktop Motherboard

1. Unified Software Suite
   – GCC acts as a central hub to control RGB Fusion, Smart Fan 6, BIOS updates, and system tuning—all from one clean interface.

2. Smart Fan Tuning
   – Dynamically adjusts fan speeds based on workload, thermal readings, and preset profiles for whisper-quiet performance.

3. Real-Time System Monitoring
   – Keep track of CPU/GPU temps, memory usage, fan RPMs, and power delivery status—all displayed in a user-friendly dashboard.

4. Auto Driver & Firmware Update
   – Ensures your system always runs with the latest enhancements, improving performance and compatibility with new hardware.

5. Custom Power Profiles
   – Allows users to define performance/power curves based on usage (gaming, editing, browsing) for efficiency or power-saving.

Application Benefits of the Gigabyte B650M D3HP AX Motherboard

1. Gaming
   – Reduced latency via 2.5 GbE LAN and Wi-Fi 6E; DDR5 memory and PCIe Gen4 graphics enhance FPS and visual fidelity.

2. Content Creation
   – Blazing-fast PCIe 4.0 storage and high RAM capacity ensure fast rendering, smooth editing, and zero bottlenecks.

3. Productivity
   – Multitasking across triple 4K displays with a stable platform and future-ready hardware that won’t need upgrades for years.

4. Overclocking
   – With advanced VRM and thermal design, this motherboard empowers enthusiasts to push their CPUs and memory to the edge.

5. System Builders
   – Compact Micro-ATX layout offers space efficiency without sacrificing performance. Ideal for smaller rigs with no compromise on features.

Gigabyte B650M D3HP AX Motherboard: Worth the Investment?

The Gigabyte B650M D3HP AX Motherboard is not just another Micro-ATX board—it’s a compact powerhouse built for the next generation.

From robust power delivery and high-speed DDR5 support to the latest wireless standards and smart software integration, it’s a platform that ensures longevity, stability, and high-end performance for years to come.

If you’re building an AM5-based system and want a motherboard that balances form, function, and future-proofing, the Gigabyte B650M D3HP AX Motherboard is an unbeatable choice.
