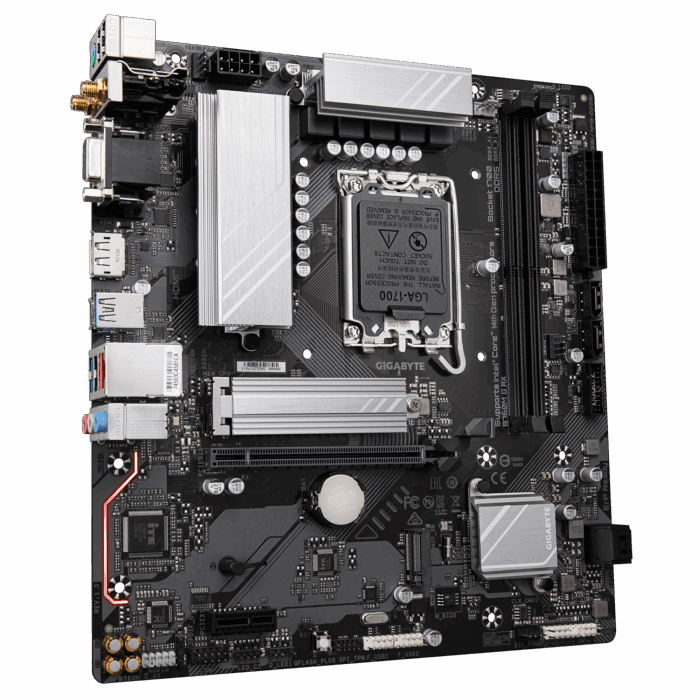

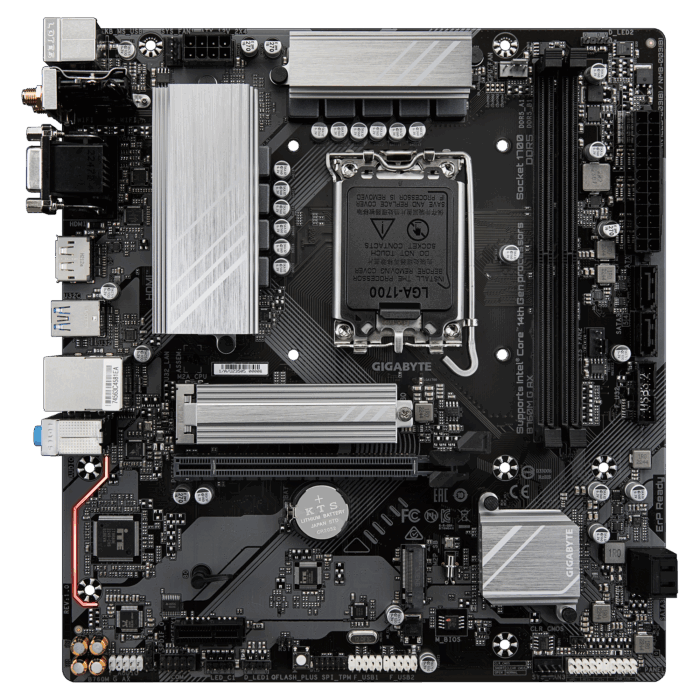

Gigabyte B760M G AX Motherboard
Original price was: ₹14,999.00.₹11,299.00Current price is: ₹11,299.00.
Get the Gigabyte B760M G AX Motherboard from Kharidiye.com at the best price. Best in class features includes:
| Feature | Detail |
|---|---|
| CPU Support | Intel 14th/13th/12th Gen (LGA 1700) |
| Memory | DDR5 (2 DIMMs, up to 96GB) |
| Storage | 2x PCIe 4.0 x4 M.2, 4x SATA 6Gb/s |
| Networking | Wi-Fi 6E, 2.5GbE LAN |
| Form Factor | Micro ATX |
About the item:
- Robust Power Delivery: Features a Hybrid 6+2+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs, ensuring stable power delivery to the CPU for reliable performance, especially under load.
- Next-Gen Connectivity: Equipped with dual PCIe 4.0 x4 M.2 slots for high-speed NVMe SSDs, alongside 2.5GbE LAN and Wi-Fi 6E for ultra-fast wired and wireless networking, providing excellent data transfer and low-latency online experiences.
- Enhanced Cooling & User-Friendly Features: Incorporates an advanced thermal design with MOSFET heatsinks and M.2 Thermal Guard for efficient heat dissipation. It also boasts Smart Fan 6 for precise fan control and Q-Flash Plus for easy BIOS updates without a CPU, memory, or graphics card.
- DDR5 Memory Optimization: Supports dual-channel DDR5 memory with impressive overclocking capabilities up to 8000 MT/s and beyond, utilizing XMP 3.0 profiles to maximize system memory performance.
- PCIe 4.0 Ready & Durable Design: Designed with full PCIe 4.0 support for the main graphics card slot, offering ample bandwidth for modern GPUs. The motherboard is built with Gigabyte’s quality components, including high-end audio capacitors and an audio noise guard, ensuring durability and a clean audio experience.
Out of stock
About Gigabyte B760M G AX Motherboard
| Category | Feature | Detail |
|---|---|---|
| CPU | Socket | LGA 1700 |
| Supported Processors | 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors | |
| Chipset | Intel® B760 Express Chipset | |
| Memory | Slots | 2 x DDR5 DIMM sockets |
| Max Capacity | Up to 96 GB (48 GB single DIMM capacity) | |
| Architecture | Dual Channel | |
| Supported Speeds | Up to DDR5 8000 (OC) and beyond, supports XMP 3.0 | |
| Graphics | Integrated Graphics | Intel® HD Graphics support (D-Sub, HDMI, DisplayPort – actual support varies with CPU) |
| Multi-display Support | Up to triple-display simultaneously | |
| Expansion Slots | PCIe x16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 (x16 mode) |
| PCIe x1 | 1 x PCI Express x1 slot, supporting PCIe 3.0 | |
| Storage | M.2 Connectors | 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) |
| SATA Ports | 4 x SATA 6Gb/s connectors | |
| RAID Support | RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices | |
| Networking | LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Intel® Wi-Fi 6E AX211 (Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz carrier bands, 11ax 160MHz) | |
| Bluetooth | BLUETOOTH 5.3 | |
| Audio | Audio Codec | Realtek® Audio CODEC |
| Channels | 2/4/5.1/7.1-channel High Definition Audio, Audio Noise Guard, High-End Audio Capacitors | |
| S/PDIF Out | Yes | |
| USB Ports | Rear USB | 1 x USB Type-C® (USB 3.2 Gen 1), 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Internal USB Headers | 1 x USB 3.2 Gen 1 header (for 2 ports), 2 x USB 2.0/1.1 headers (for 4 ports) | |
| Internal I/O | Power Connectors | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector |
| Fan Headers | 1 x CPU fan header, 3 x system fan headers | |
| RGB Headers | 2 x addressable LED strip headers, 1 x RGB LED strip header | |
| Other Headers | Front panel header, front panel audio header, S/PDIF Out header, Trusted Platform Module header, serial port header, Q-Flash Plus button, reset jumper, Clear CMOS jumper | |

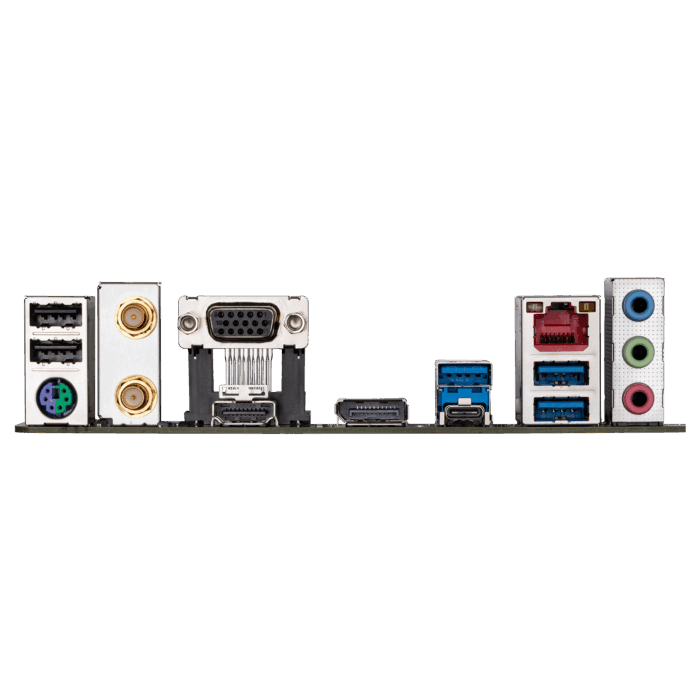

| Back Panel I/O | Ports | 2 x USB 2.0/1.1, 1 x PS/2 keyboard/mouse, 2 x SMA antenna connectors, 1 x D-Sub, 1 x HDMI, 1 x DisplayPort, 3 x USB 3.2 Gen 1, 1 x USB Type-C® (USB 3.2 Gen 1), 1 x RJ-45, 3 x audio jacks |
| Form Factor | Micro ATX Form Factor (24.4cm x 22.5cm) | |
| Features | VRM Design | 6+2+1 Phases Hybrid Digital VRM Solution with Low RDS(on) MOSFETs |
| Thermal Design | Advanced Thermal Design with fully covered MOSFET Heatsinks, M.2 Thermal Guard | |
| EZ-Latch | PCIe 4.0 x16 Slot with Quick Release Design | |
| Smart Fan 6 | Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, precise fan curve control | |
| Q-Flash Plus | Update BIOS Without Installing the CPU, Memory and Graphics Card | |
| PerfDrive | GIGABYTE exclusive BIOS settings for balancing performance, power consumption, and temperature | |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
Key Features Overview of the Gigabyte Gaming Performance Motherboard
-
Intel® B760 chipset: Designed for 12th–14th Gen Intel Core LGA 1700 processors.
-
Hybrid 8 + 1 + 1 phase digital VRM with 60 A DrMOS for efficient, stable power delivery.
-
PCIe 4.0 support: One reinforced x16 slot for graphics and two PCIe 4.0 x4 M.2 slots for ultra-fast NVMe storage.
-
Dual-channel DDR5 memory via four DIMM slots supporting XMP performance profiles.
-
Advanced thermal design, featuring full heatsinks and thermal guards to maintain VRM and M.2 SSD temperatures.
-
Front-panel USB‑C 10Gb/s, HDMI, and DisplayPort outputs for flexible connectivity.
-
Smart Fan 6 technology: Multiple temperature sensors, hybrid fan headers, and fan-stop controls
-
EZ-Latch PCIe slot for easy GPU installation/removal.
-
Q‑Flash Plus BIOS update without CPU, RAM, or GPU installed.
-
2.5 GbE LAN & Wi‑Fi 6E (802.11ax) with access to the 6 GHz band, reducing interference and improving throughput by up to 5.5× compared to Wi‑Fi 5.
-
Audio solution: 8‑channel HD audio with noise guard and premium capacitors for clean sound output.
-
RGB Fusion headers: Two addressable + two 12 V RGB connectors for system lighting.
Gigabyte Gaming Performance Motherboard: Specification Highlights
-
Dimensions: Compact micro-ATX (244 × 244 mm).
-
CPU Support: The Gigabyte B760M G AX Motherboard is compatible with Intel Core 12th / 13th / 14th Gen via LGA 1700 socket.
-
Memory: 4× DDR5 slots, supporting up to 7600 MT/s (OC), total capacity up to 192 GB; XMP ready.
-
Storage Ports: 2× PCIe 4.0 M.2 x4 (NVMe only) + 4× SATA III (6 Gb/s).
-
Expansion: 1× PCIe 4.0 x16, 1× PCIe 3.0 x4; EZ-latch reinforcement.
-
Rear USB I/O: USB‑C 3.2 Gen 2, USB‑A Gen 1, USB‑2.0, plus PS/2 and audio jacks.
-
Video Outputs: HDMI 2.0 + DisplayPort 1.4, supporting triple-display with CPU iGPU
-
Networking: 2.5 GbE LAN (Realtek RTL8125BG) & Wi‑Fi 6E + BT 5.x.
-
Audio Codec: Realtek ALC897 or equivalent; shielded layout for lower interference.
Gigabyte Gaming Performance Motherboard: Performance in Every Aspect
-
VRM & Power Delivery: The 8 + 1 + 1 phase design with 60 A DrMOS in the Gigabyte B760M G AX Motherboard ensures efficient handling of 125 W Turbo boost CPUs, optionally extendable with airflow assistance.
-
Memory Performance: Dual-channel DDR5 with XMP support enables high-bandwidth memory setups for gaming and productivity
-
Storage Speeds: PCIe 4.0 M.2 slots deliver up to 7,000 MB/s bandwidth for NVMe SSDs; thermal guards prevent throttling
-
Graphics Performance: PCIe 4.0 x16 slot and outputs support current-gen GPUs and triple-display via integrated graphics.
-
Networking Throughput: Wired 2.5 GbE and Wi‑Fi 6E reduce latency and congestion, ideal for gaming, streaming, and large data transfers.
-
Thermal Efficiency: Large VRM heatsinks, M.2 shields, Smart Fan 6 controls ensure stable operation in high-load scenarios.
Gigabyte Computer Gaming Motherboard: Enhanced Up‑to‑Date Connectivity
-
Wi‑Fi 6E Dual-Band + 6 GHz: With the Gigabyte B760M G AX Motherboard, it is sure that one can attain faster speeds, reduced traffic in dense environments, smoother VR streaming while enjoying or working in your content.
-
2.5 GbE LAN: High-bandwidth wired connection for gaming and workstation use.
-
USB Options: Front USB‑C 10 Gb/s, multiple USB 3.2 Gen 1/2 and USB‑2.0 ports provide flexibility for peripherals.
-
Dual Video Outputs: HDMI and DisplayPort offer plug-and-play support for diverse monitor setups
Gigabyte Durable Computer Motherbaord: Durability & Build‑Quality Features
-
Reinforced PCIe Slot & PCIe EZ‑Latch: Structural GPU support and easy release.
-
Solid I/O Shield & Heatsinks: Factory-installed shield and full coverage keep components safe and cool.
-
Ultra-Durable PCB & Components: Premium chokes, capacitors, and DrMOS deliver long-term reliability.
-
Thermal Guards: Prevent thermal throttling during intense tasks.
Gigabyte Intel Series Desktop Motherboard: Intel Core Processor Performance
-
12th–14th Gen Intel CPUs: The Gigabyte B760M G AX Motherboard is fully compatibility with chips from Core i3 to i9, with stable power delivery for sustained workloads.
-
Overclocking Support: XMP memory profiles easy to enable; CPU power limits adjustable in BIOS
-
Built-in GPU Output: Excellent iGPU support for Core i5/i7 with UHD graphics in everyday, productivity, and casual gaming
-
Thermal Management: Smart Fan 6 ensures VRM and chipset stay cool during extended use
Gigabyte Computer Gaming Motherboard: Application Utility & Benefits
-
Gaming Builds: Fast networking, PCIe 4.0 storage/GPU, triple-display support, sturdy build for long-term gaming rigs
-
Content Creation: High-speed M.2 storage, USB‑C, multi-display, and CPU-GPU support accelerate editing workflows
-
Home & Office: Efficient power, quiet cooling, and a variety of I/O make it ideal for workstations and daily use
-
Compact Builds: Micro-ATX form factor suits mini-ITX cases with enough features for serious performance
-
Easy Upgrades/Repairs: EZ-Latch GPU slot, Q-Flash Plus BIOS, strong headers simplify DIY tasks
Gigabyte Gaming Performance Motherboard: Benefits Summary
-
Future‑ready: LGA1700 socket and B760 chipset ensure compatibility with current and future Intel CPUs
-
Balanced performance: Excellent VRM and DDR5 support for multitasking, gaming, and creation
-
Superior connectivity: Includes cutting-edge Wi‑Fi 6E, 2.5 GbE, USB‑C, video outputs—all hygienic for modern setups
-
Durable design: Quality materials and thermal engineering make for a long-lasting build
-
User‑friendly build experience: EZ‑Latch slots and BIOS flashback cater to novices and experts alike
Gigabyte B760M G AX Motherboard: worth the investment?
The Gigabyte B760M G AX Motherboard is a thoughtfully designed micro‑ATX motherboard that balances power, performance, connectivity, and durability—ideal for modern Intel Core-based systems.
Whether you’re building a gaming rig, workstation, or office setup, this board delivers reliable stability and future-ready tech in a compact yet flexible form.
