MSI GeForce RTX 5070 Ti 16G Shadow 3X OC Graphics Card

About MSI GeForce RTX 5070 Ti 16G Shadow 3X OC Graphics Card

Key Features of the MSI Computer Gaming Graphics Card

1. GPU Architecture: Powered by NVIDIA’s latest Blackwell architecture, offering enhanced performance and efficiency.

2. Memory: This MSI Computer Gaming Graphics Card is equipped with 16GB of GDDR7 memory running at 28 Gbps, ensuring high-speed data processing for demanding applications.

3. Core Clocks:

   • Extreme Performance: 2497 MHz (via MSI Center)

   • Boost Clock: 2482 MHz (GAMING & SILENT Mode)

4. CUDA Cores: Features 8,960 CUDA cores for parallel processing tasks, enhancing rendering and computational workloads.

5. Interface: Utilizes PCI Express® Gen 5, providing increased bandwidth for faster data transfer between the GPU and motherboard.

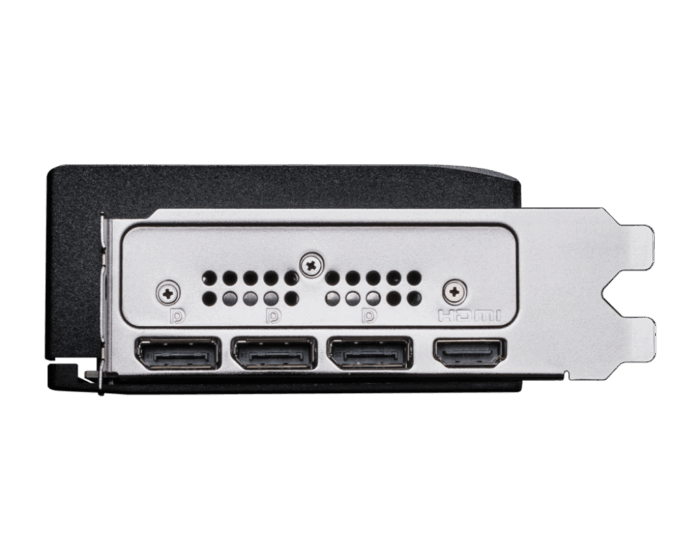

6. Display Outputs:

   • 3 x DisplayPort v2.1b

   • 1 x HDMI™ 2.1b (supports up to 4K at 480Hz or 8K at 120Hz with DSC, Gaming VRR, HDR)

7. Maximum Digital Resolution: Supports resolutions up to 7680 x 4320, catering to 8K displays.

8. Power Requirements:

   • Power Consumption: 300W

   • Recommended PSU: 750W

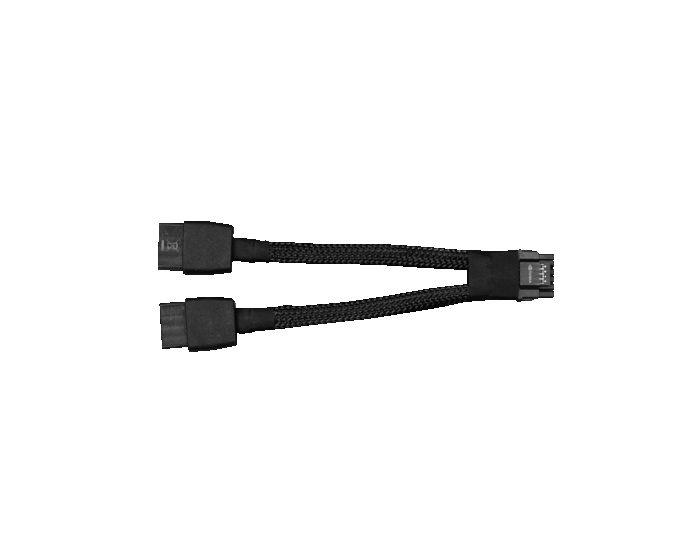

   • Power Connectors: 1 x 16-pin

9. Dimensions & Weight:

   • Size: 303 x 121 x 49 mm

   • Weight: Approximately 994 g

NVIDIA Blackwell Architecture present in the MSI Shadow OC Series Graphics Card

The MSI GeForce RTX 5070 Ti 16G Shadow 3X OC Graphics Card is built on NVIDIA’s Blackwell architecture, introducing several advancements:

• Fifth-Generation Tensor Cores: Enhances AI performance with support for FP4 and DLSS 4.

• New Streaming Multiprocessors: Optimized for neural shaders, improving rendering efficiency.

• Fourth-Generation Ray Tracing Cores: Delivers realistic lighting and shadow effects with full ray tracing capabilities.

• DLSS 4: Utilizes AI to boost frame rates and image quality through Multi Frame Generation and enhanced Ray Reconstruction.

• NVIDIA Reflex 2: Reduces system latency for competitive gaming, featuring Frame Warp technology for faster responsiveness.

• NVIDIA ACE: Supports digital humans and AI assistants, expanding creative possibilities.

• NVIDIA Studio: Provides tools and technologies tailored for creators, enhancing productivity in video editing, 3D rendering, and graphic design.

• NVIDIA Broadcast: Offers AI-powered features for streaming, such as noise removal and virtual backgrounds.

Triple-Fan Thermal Design & Cooling Features in the MSI GeForce RTX Series Desktop Graphics Card

Efficient cooling is paramount for sustained performance. The MSI GeForce RTX 5070 Ti 16G Shadow 3X OC Graphics Card incorporates:

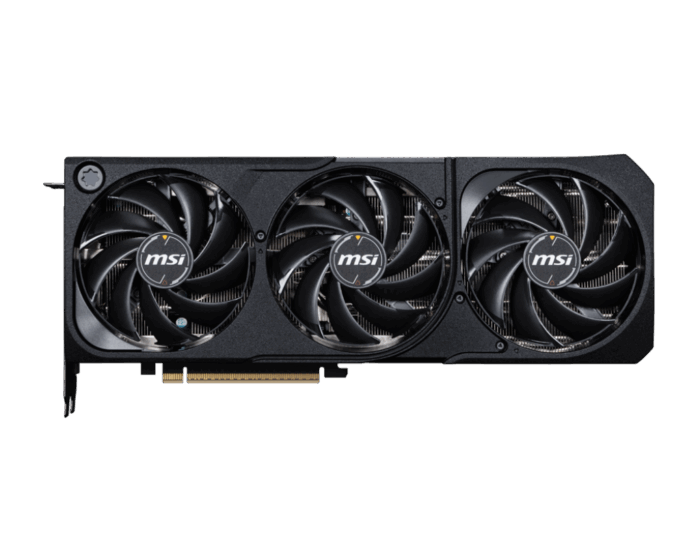

1. TORX Fan 5.0: Features fan blades linked by ring arcs, increasing airflow by 23% compared to traditional axial fans.

2. Nickel-Plated Copper Baseplate: Rapidly captures heat from the GPU and memory modules, transferring it to the heatsink.

3. Core Pipes: Designed with a square shape to maximize contact with the GPU baseplate, ensuring efficient heat distribution across the heatsink.

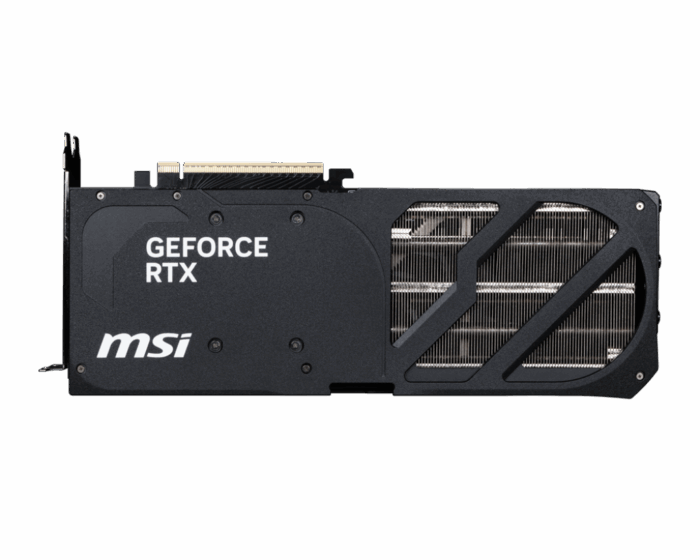

4. Reinforcing Backplate: Includes an airflow vent, allowing hot air to escape directly, aiding in thermal management.

5. Zero Frozr Technology: Fans stop spinning under low temperatures, eliminating noise during light workloads and resuming operation when needed.

Durability and Hardware Reliability of the MSI GeForce RTX Series Desktop Graphics Card

MSI emphasizes build quality and longevity:

1. Reinforced Metal Structure: An internal metal framework enhances the card’s structural integrity.

2. DrMOS Power Stage Solutions: Provides efficient power delivery with low power loss and improved voltage control.

3. High-Quality Thermal Pads: Clay-based pads offer additional heat dissipation for critical components.

4. Additional Fuses: Integrated into the PCB to safeguard against electrical damage.

5. 2 oz Copper PCB: A thicker copper layer improves conductivity, enhancing heat dissipation and overall reliability.

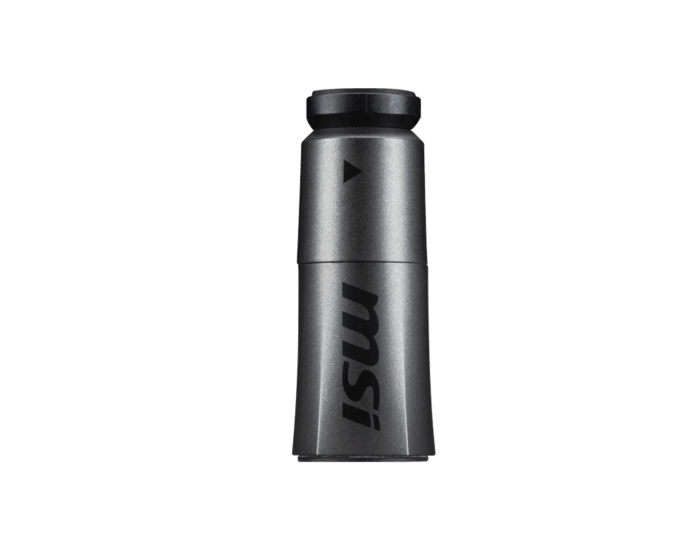

6. Bundled Support Stand: Included to prevent GPU sag, maintaining the card’s alignment within the case.

Applications of the MSI GeForce RTX 5070 Ti 16G Shadow 3X OC

The MSI GeForce RTX 5070 Ti 16G Shadow 3X OC Graphics Card is versatile, catering to various user needs:

1. Gaming:

   • Delivers high frame rates at 1440p and 4K resolutions.

   • Supports real-time ray tracing and DLSS 4 for enhanced visuals.

   • NVIDIA Reflex 2 ensures low latency for competitive gaming.

2. Content Creation:

   • Accelerates tasks in video editing, 3D rendering, and graphic design.

   • Compatible with NVIDIA Studio drivers for optimized performance in creative applications.

3. AI and Machine Learning:

   • Fifth-gen Tensor Cores facilitate AI model training and inference.

   • Suitable for developers working on AI-driven applications.

4. Streaming and Broadcasting:

   • NVIDIA Broadcast enhances live streams with AI-powered features.

   • High-quality encoding ensures smooth and professional broadcasts.

5. Virtual Reality (VR):

   • VR-ready capabilities provide immersive experiences with high frame rates and detailed graphics.

The MSI GeForce RTX 5070 Ti 16G Shadow 3X OC Graphics Card stands out as a powerful and reliable graphics card, suitable for gamers, creators, and professionals seeking top-tier performance and features.
