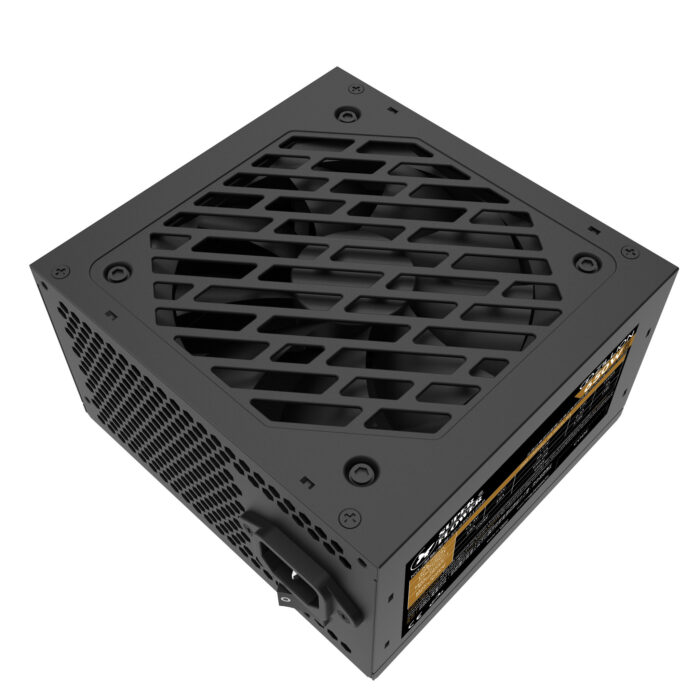

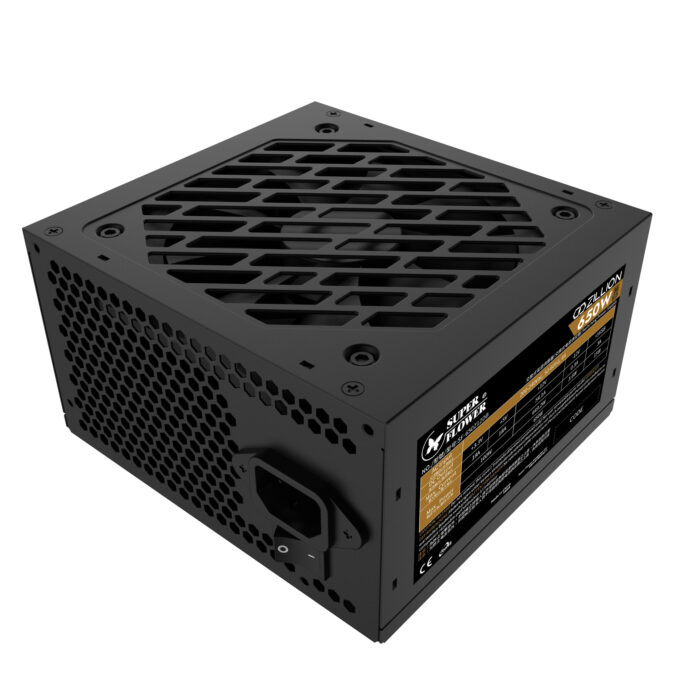

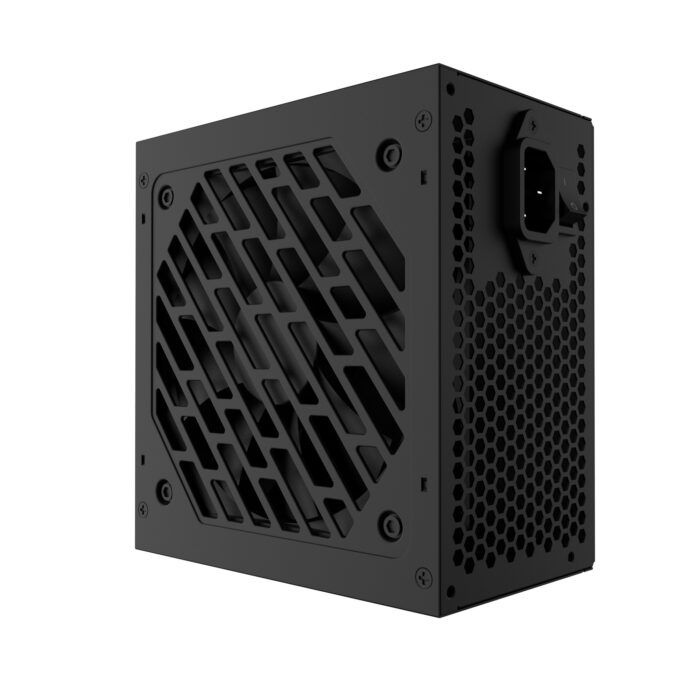

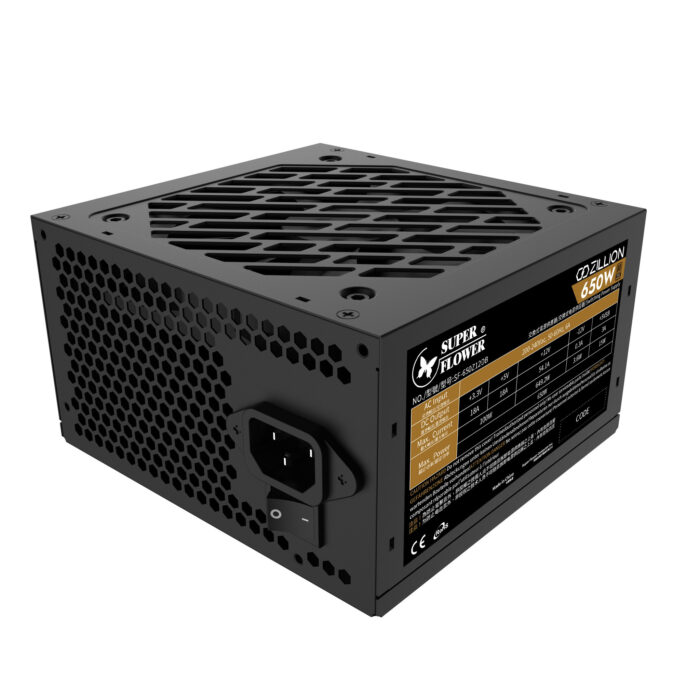

Superflower 650W Zillion Bronze Power Supply
Avail the all-new Superflower 650W Zillion Bronze Power Supply from Kharidiye.com at the best price. Best in-class features includes:
| Specification | Details |
|---|---|
| Model | Zillion DB Bronze 650W (SF-650Z12DB) |
| Wattage | 650 W |
| Efficiency (Bronze) | 85 % @ 20 % |
| Cooling Fan | 120 mm sleeve-bearing fan |
| Protections | OVP, OCP, OTP, SCP, OPP, NLP |
About the item:
-
Reliable Bronze-Level Efficiency
Offers up to 88 % efficiency at 50 % load, ensuring energy savings and cooler operation. -
Robust Protection Suite
Comes equipped with six safety protections—OVP, OCP, OTP, SCP, OPP, and NLP—for comprehensive electrical safety. -
Sturdy Build with Quality Components
Features a 105 °C-rated main capacitor, DC-DC topology, and flat ribbon cables for durability, stability, and effective thermal performance. -
Compact and Efficient Cooling
The 120 mm sleeve-bearing fan provides quiet yet effective cooling, aiding longevity and consistent performance. -
Well-Rounded Performance in Independent Testing
Confirmed by Cybenetics testing: ~87.5 % average efficiency, low noise (~34.8 dBA), tight voltage regulation, and clean ripple performance.
About Superflower 650W Zillion Bronze Power Supply
| Specification | Details |
|---|---|
| Model | Zillion DB Bronze 650W (SF-650Z12DB) |
| Total Power Output | 650 W |
| Efficiency (80 PLUS Bronze) | 85 % at 20 % load; 88 % at 50 %; 85 % at full load (230 V EU spec) |
| Compliance | Supports ATX 12V v2.3 & EPS 12V v2.92 standards |
| GPU Support | Includes (6+2)-pin PCIe connectors suitable for high-end graphics cards |
| Input | AC 200–240 V ~, 6 A, 50–60 Hz |
| Cooling | 120 mm sleeve-bearing fan for efficient and quiet cooling |
| Protection Mechanisms | OVP, OCP, OTP, SCP, OPP, NLP (extensive electrical safeguards) |
| Design | DC-DC power delivery, flat ribbon cables, 105 °C-rated main capacitor |
| Dimensions | Approx. 140 × 150 × 86 mm (L × W × H) |
| Weight | Around 1.5 kg |
| Electrical Output Rails | +3.3 V: 18 A, +5 V: 18 A, +12 V: 54.1 A, –12 V: 0.3 A, +5VSB: 3 A |
| Combined Rail Power | +3.3V & +5V: 100 W, +12V: 649.2 W, –12V: 3.6 W, +5VSB: 15 W |
| Tested Performance | Independent tests show ≈87.5 % average efficiency, ≈34.8 dBA noise, stable ripple and voltage lines (~1 % deviation on +12 V) |
