Super Flower Leadex III GOLD-850W ATX3.1, PCIe5.1 Power Supply
Avail the all-new Super Flower Leadex III GOLD-850W SMPS from Kharidiye.com at the best price. Best in-class features includes:
| Specification | Details |
|---|---|
| Model No. | SF-850F14HG |
| Wattage | 850 W |
| Efficiency (80 PLUS Gold) | 20 %: 87 %, 50 %: 90 %, 100 %: 87 % (115 V internal) |
| Input (AC) | 100–240 V, 50/60 Hz, Full-range APFC |
| Cooling | 130 mm Fluid-Dynamic-Bearing (FDB) fan |
| Protection Features | OVP, OCP, Dual OPP, SCP, UVP, OTP, NLO, SIP |
| Certifications | cTÜVus, TÜV, CB, CE, FCC, RCM, BSMI, RoHS, KCC, CCC |
| Dimensions | 160 mm (L) × 150 mm (W) × 86 mm (H) |
| High-temp Testing | Passed 50 °C hot testing |
About the item:
-
High 80 PLUS Gold Efficiency — Impressive efficiency across loads: 87 % at 20 %, 90 % at 50 %, and 87 % at full load (115 V).
-
Comprehensive Protection Suite — Equipped with over-voltage, over-current, over-power, short-circuit, under-voltage, over-temperature, no-load, and surge protections for enhanced safety and reliability.
-
Fully Modular and Flexible Cabling — Detachable cable design with extensive connectors including a modern 16-pin (12VHPWR) for PCIe Gen 5 graphics cards, improving cable management and future-proofing.
-
Robust Thermal & Component Design — A durable 130 mm FDB fan and successful 50 °C hot testing ensure stable cooling and long-lasting performance.
-
Wide Compatibility & Certifications — Compatible with Intel EPS 2.92 & ATX 2.52 standards and holding numerous global safety certifications, reinforcing broad system compatibility and quality
About Super Flower Leadex III GOLD-850W SMPS
| Specification Category | Details |
|---|---|
| General | Model: SF-850F14HG Wattage: 850 W Efficiency (20 %/50 %/100 %): 87 % / 90 % / 87 % (115 V) |
| Input / Design | AC Input: 100–240 V, 50/60 Hz (Full-range APFC) Intel EPS 2.92 & ATX 2.52 compatible |
| Cooling | 130 mm FDB fan |
| Protection Features | OVP (Over Voltage Protection) OCP (Over Current Protection) Dual OPP (Over Power Protection) SCP (Short Circuit Protection) UVP (Under Voltage Protection) OTP (Over Temperature Protection) NLO (No Load Operation) SIP (Surge & Inrush Protection) |
| Safety Certifications | cTÜVus, TÜV, CB, CE, FCC, RCM, BSMI, RoHS, KCC, CCC |
| Physical Dimensions | 160 mm (L) × 150 mm (W) × 86 mm (H) |
| Thermal Testing | Passed 50 °C hot testing |
| Cable Layout | – 20+4 pin detachable (600 mm) – 8 (4+4) pin CPU (2 cables, 700 mm) – SLI: 2 × PCI-6+2 pin (3 cables: 550+150 mm) – SATA: 3 cables (550+120+120 mm) – Molex: 4-Molex on 1 cable (550+100+100+100 mm) – PCIe 16-pin (12VHPWR) one cable (700 mm) |

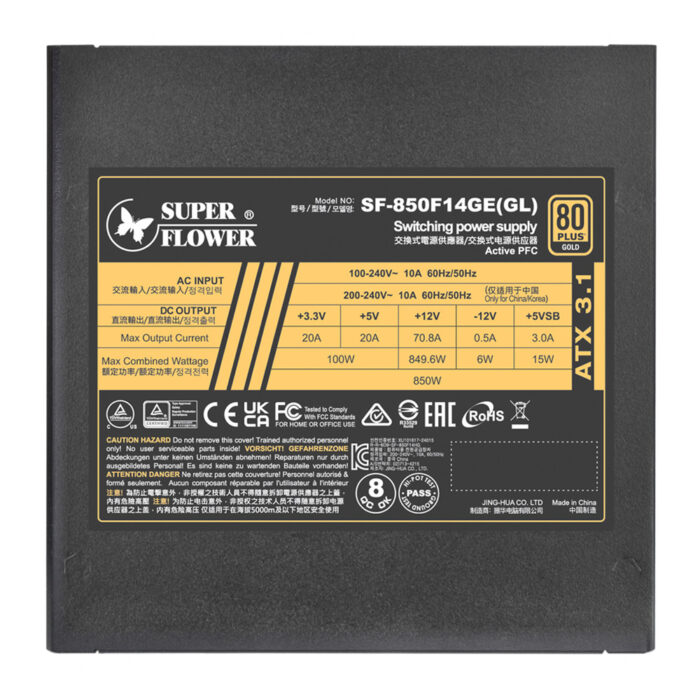

| DC Output Specs | +3.3 V @ 20 A +5 V @ 20 A +12 V @ 70.8 A −12 V @ 0.5 A +5 VSB @ 3.0 A |
| Combined Wattage | +3.3 V & +5 V combined: 100 W +12 V: 849.6 W −12 V: 6 W +5 VSB: 15 W Total: 850 W |
