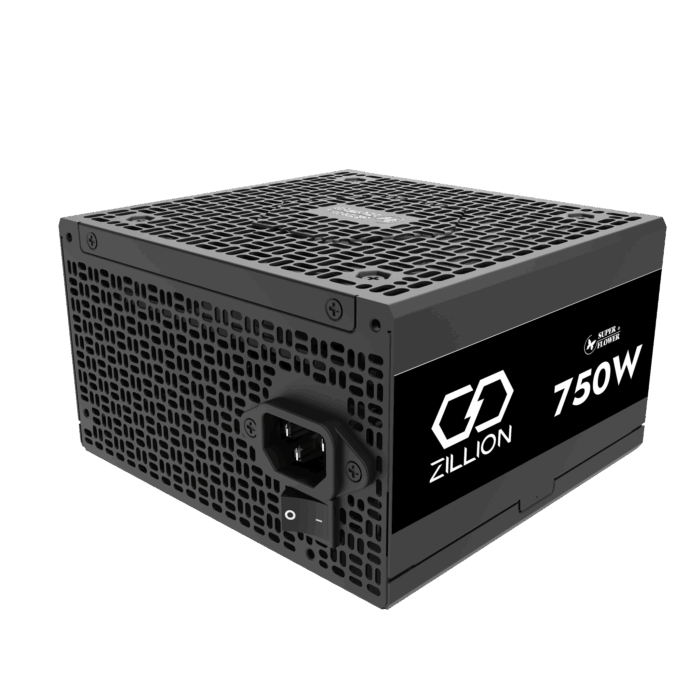

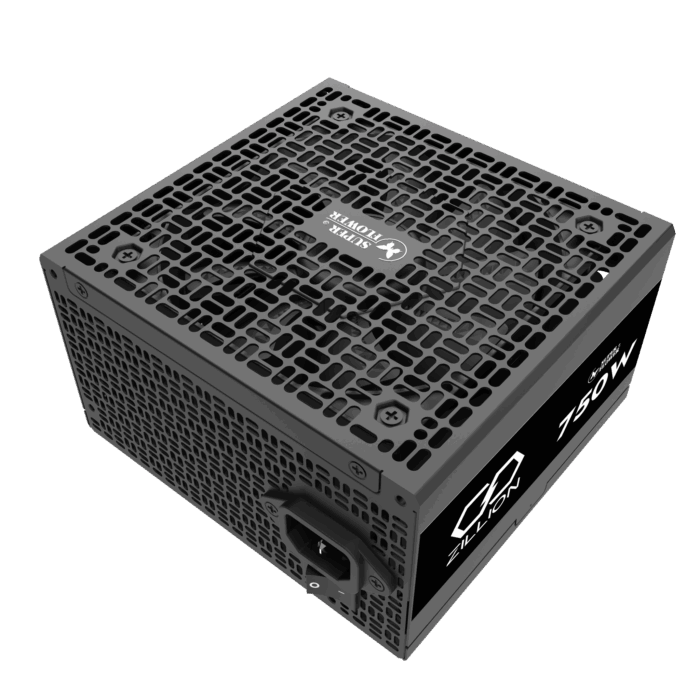

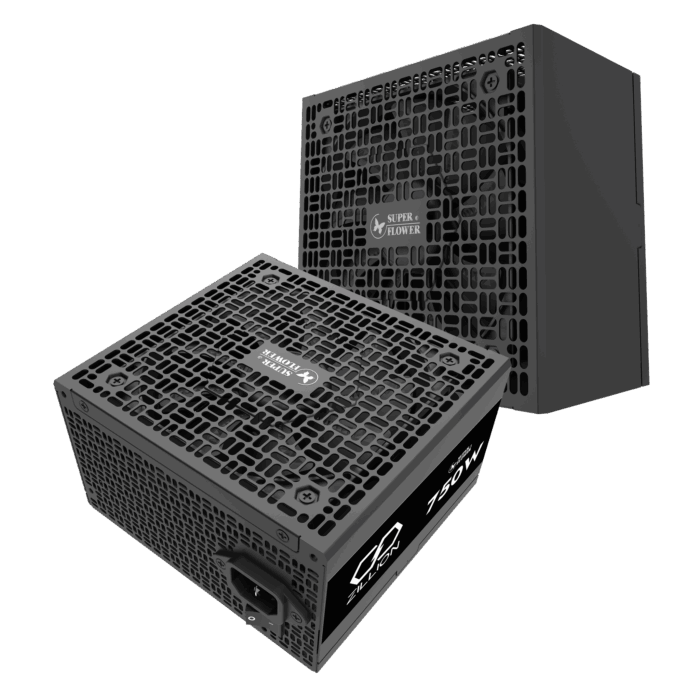

Superflower 750W Zillion Silver Power Supply
Avail the all-new Superflower 750W Zillion Silver Power Supply from Kharidiye.com at the best price. Best in-class features includes:
| Specification | Details |
|---|---|
| Model | Zillion DB Silver 750W ATX 3.1 |
| Wattage | 750 W |
| Efficiency | ≥ 87% and < 89% overall (230 V) |
| Cooling Fan | 120 mm HDB fan |
| Protections | OVP, OCP, OTP, SCP, OPP, NLP |
About the item:
-
Silver-Level Efficiency — Independently tested to deliver between 87% and 89% overall efficiency under standard EU 230 V power, exceeding basic Bronze performance.
-
Modern ATX 3.1 Platform Compliance — Fully adheres to the latest ATX 12V v3.1 and EPS 12V v2.92 standards, ensuring compatibility with current-generation systems.
-
Premium Electrical Protections — Features a comprehensive suite of safety mechanisms: OVP, OCP, OTP, SCP, OPP, and NLP for reliable protection under various load scenarios.
-
Quality Components & Build — Utilizes a long-lasting 105 °C-rated capacitor and DC-DC regulation for stable, efficient performance. Flat cable design enhances airflow and cable management.
-
Independent Validation — Certified by Cybenetics as Silver, confirming consistent efficiency and reliability across varied load conditions.
About Superflower 750W Zillion Silver Power Supply
| Specification | Details |
|---|---|
| Model | Zillion DB Silver 750W ATX 3.1 (SF-750Z12DB (D)) |
| Total Power Output | 750 W |
| Efficiency | Cybenetics Silver certified: ≥ 87% & < 89% overall efficiency (230 V) |
| Standards Compliance | ATX 12V v3.1 and EPS 12V v2.92 |
| Compatibility | Supports high-performance multi-core Intel/AMD CPUs; SLI/CrossFire GPUs |
| PCIe Connectors | 6+2-pin PCI-E connectors for high-end graphics |
| AC Input (Frequency) | 200–240 V ~, 50–60 Hz |
| Cooling | 120 mm HDB fan for reliable, quiet airflow |
| Protection Features | Over Voltage, Over Current, Over Temperature, Short Circuit, Over Power, No-Load Protection (OVP, OCP, OTP, SCP, OPP, NLP) |
| Safety Certifications | TÜV, CB, CE, RoHS, FCC, KC, KCC |
| Main Capacitor | 105 °C-rated Taiwanese capacitor for enhanced longevity |
| Platform Design | DC-DC regulation platform for improved voltage stability |
| Cabling | Flat cables, including 20+4PIN, dual CPU, PCIe, SATA, PATA connectors |
| Dimensions | 140 mm (L) × 150 mm (W) × 86 mm (H) |
| Weight | Approximately 1.5 kg |
| DC Output Rails | +3.3 V (18 A), +5 V (18 A), +12 V (62.5 A), –12 V (0.3 A), +5VSB (3 A) |
| Max Combined Outputs | +3.3V & +5V: 100 W; +12V: 750 W; –12V: 3.6 W; 5VSB: 15 W; Total: 750 W |
